Suzuki Forenza / Reno  front passenger   airbag  seat mat  sensor  emulator

Compatibility:

• Make: Suzuki
• Model: Forenza  & Reno
• Years: 2004-2009
• Version :  USA   - primarily for US and Canadian vehicles.

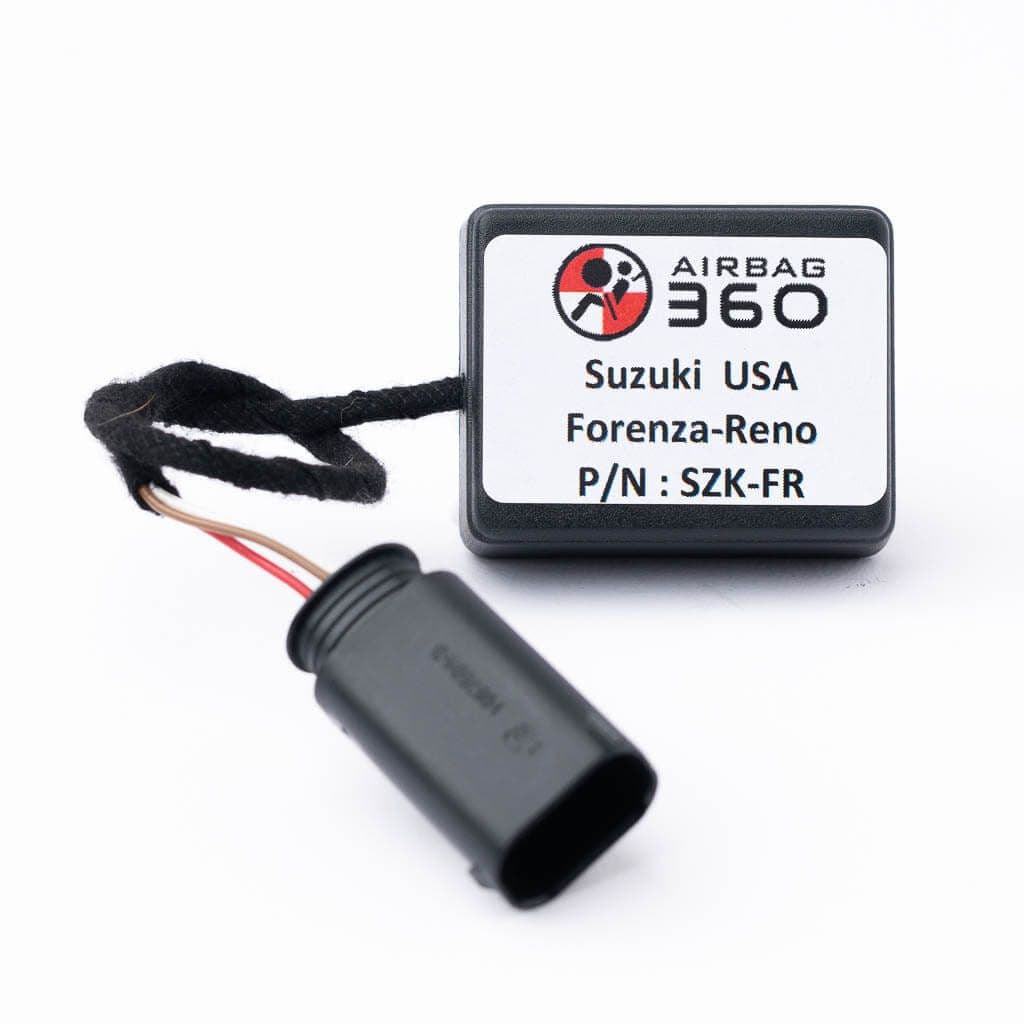

Airbag360 emulator offers compatibility with the discontinued Occupant Sensor - Suzuki (part number 85501-85Z00)

Important before purchase

Ensure your vehicle's airbag  system  issue has been correctly diagnosed. Airbag360 emulator specifically resolves fault codes indicating a passenger occupancy sensor malfunction

The airbag360 emulator is primarily compatible with US/Canada spec cars. If you're located elsewhere or your vehicle was imported from the US

Note: If you are unsure about compatibility with your specific vehicle, please use the contact form or email us at info@airbag360.com.

Installation Instructions:

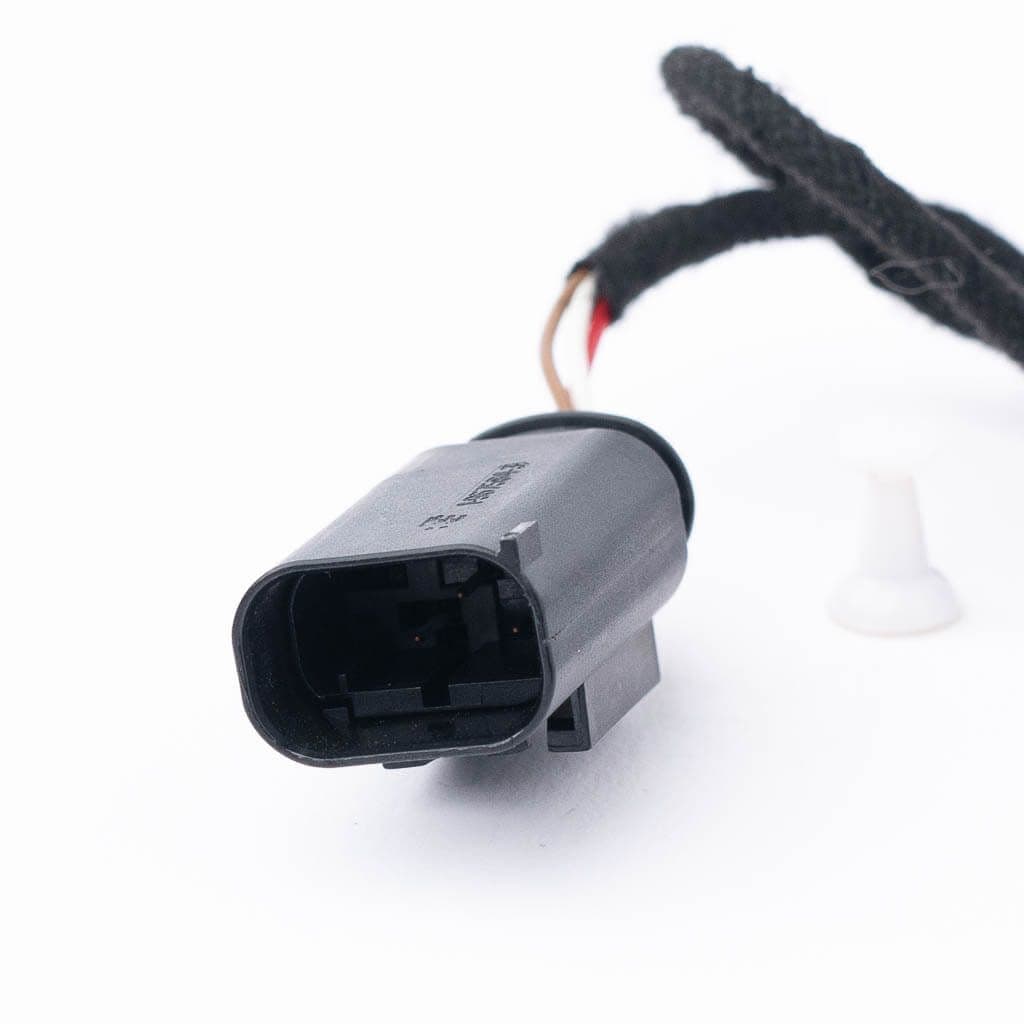

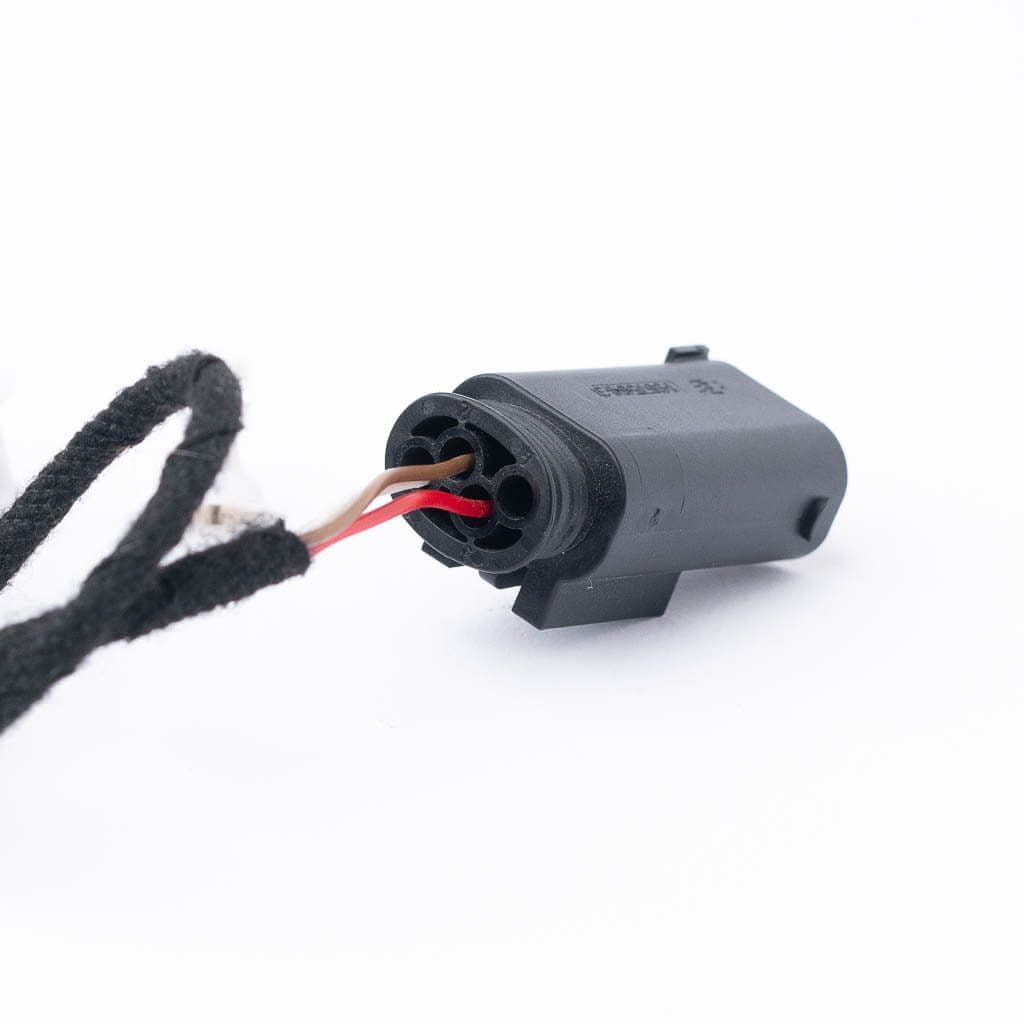

With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation.

Crucially, for safety, it simulates a "Seat Occupied" status, thereby enabling the passenger airbag.

1. Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
2. Connect the Airbag360 emulator to the original sensor plug.
3. Turn ON the ignition and start the vehicle.
4. Install seat  belt  simulator

In most cases, the Airbag warning light will turn OFF automatically after installation.

However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory.
