Hyundai Sonata (2008-2010) OCS Passenger Seat Mat Emulator

Resolves Diagnostic Trouble Code (DTC): B1448 OC (Occupant Classification) - Passenger Sensor Mat Defect.

Compatibility:

• Make: Hyundai
• Model: Sonata
• Years: 2008*-2010
• Version :  USA   - primarily for U.S and Canadian vehicles

*Important Note for 2008 Models: This emulator is compatible  with 2008 Hyundai Sonata  face-lift  models featuring a multi-bar front bumper grille. Please refer to the gallery picture for visual confirmation. The visual check for the front bumper applies exclusively to the 2008 Sonata due to a facelift introduced that year, making it the easiest  way to confirm your specific model.

If your 2008 Sonata has a single -bar front bumper grille, you will need to purchase the 2006-2008 Airbag360 emulator instead.

Before Purchase:

• Ensure your vehicle's airbag issue has been correctly diagnosed. Airbag360 emulator specifically resolves fault codes indicating a OCs sensor malfunction (B1448).
• Visual check for the front bumper    (applies  to 2008  sonata )

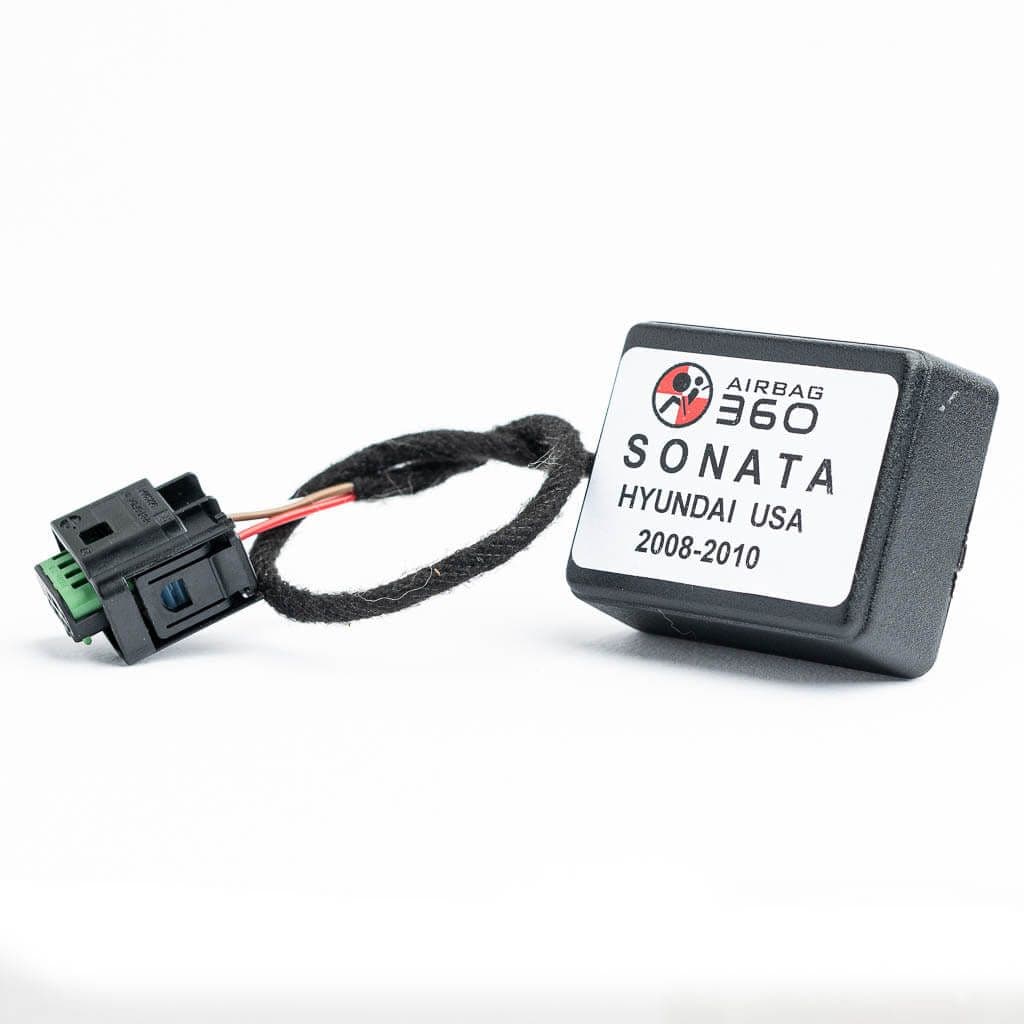

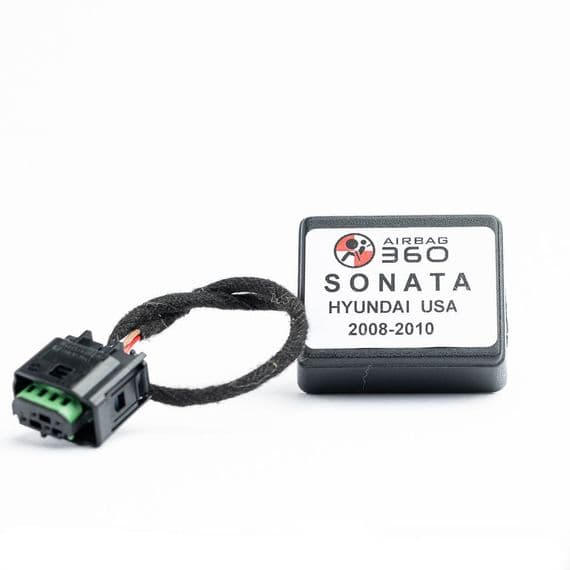

Airbag360 emulator features:

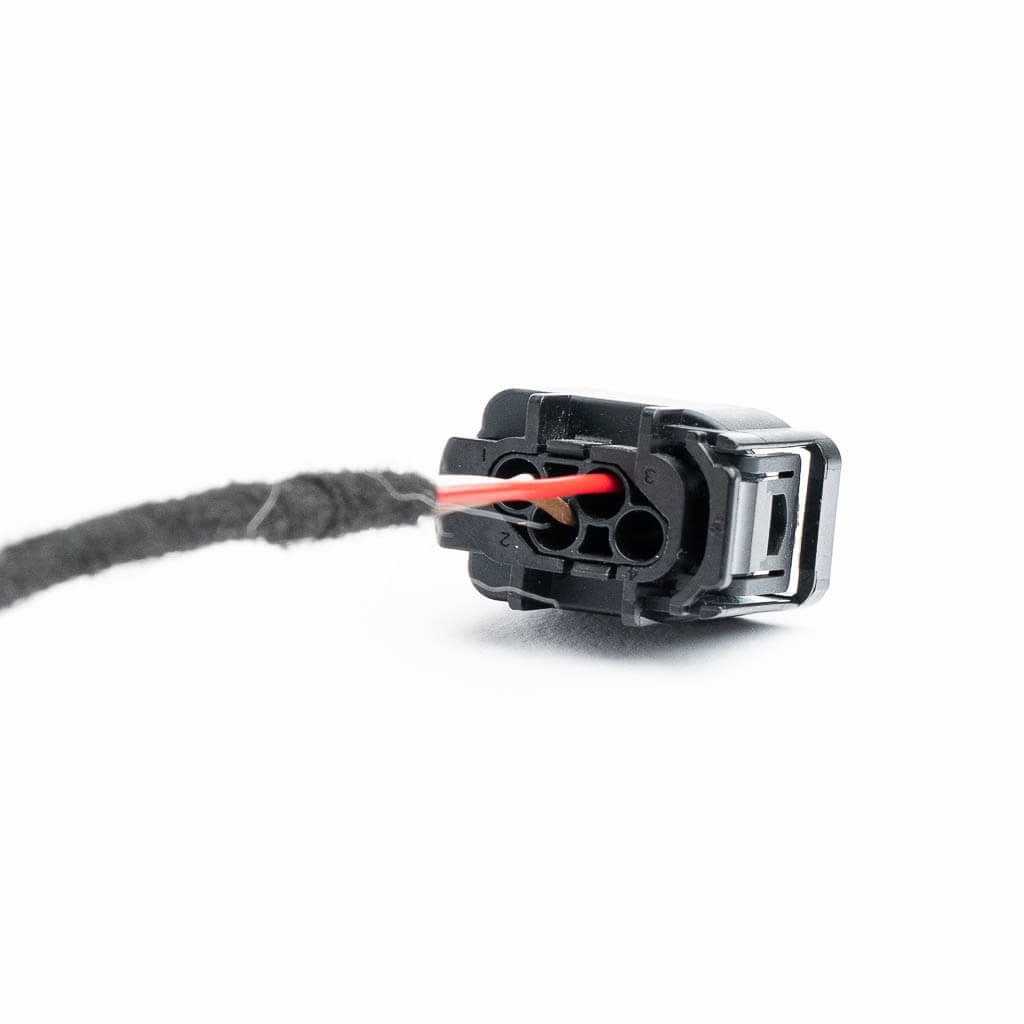

• With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation
• Functionality: Simulates "Seat Occupied" status, enabling the passenger airbag.
• Manufactured  using high-quality, automotive-grade components.

Installation Instructions:

1. Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
2. Connect the Airbag360 emulator to the original sensor plug.
3. Turn ON the ignition and start the vehicle.

In most cases, the Airbag warning light will turn OFF automatically after installation.

However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory.
