Compatibility:
- Make: Nissan
- Model: Murano
- Years: 2009- 2014 (2nd generation )
- Version : US
- Region: Primarily for US and Canadian vehicles.
- OBD codes : b1018 / b1019
Important before purchase:
- Airbag360 emulator specifically resolves fault codes indicating OCS malfunction (B1018 / B1019 )
- The OCS sensor has a 3-wire configuration with red, white, and brown wires on the sensor-side plug. It is important to verify for vehicles produced at the end (2014 )or beginning (2009) of model year transitions, as different versions may exist for the same model / year
- Fault code B00A0-00 indicates a different NOT compatible sensor type
Contact us if you require assistance with OBDII diagnostic codes, connector locations and compatibility . We would be glad to verify this information for you
Product Features:

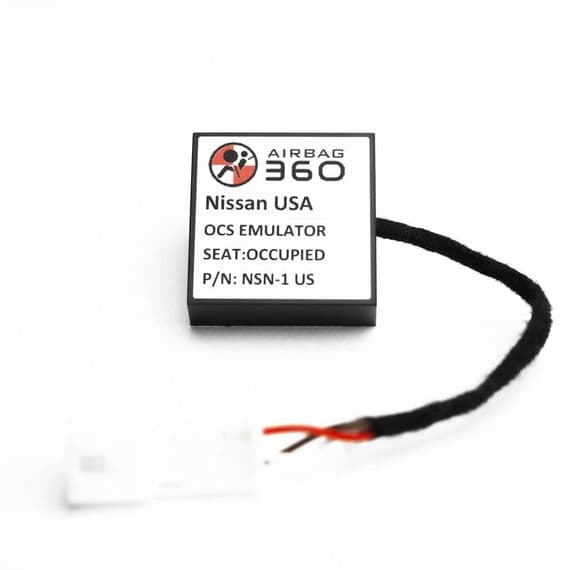

With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation. Crucially, for safety, it simulates a "Seat Occupied" status, thereby enabling the passenger airbag.
Installation Instructions:
Installation is quick and easy in 3 steps:
- Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
- Connect the Airbag360 emulator to the original sensor plug.
- Turn ON the ignition and start the vehicle.
In most cases, the Airbag warning light will turn OFF automatically after installation.
However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory.
We will also provide you with instructions on how to manually erase fault codes and how to disable the seatbelt reminder light that may be triggered by the occupied signal sent by the emulator.
(The emulator simulates an occupied seat.) Therefore, the airbag will be armed, and the car will prompt you to fasten your seatbelt.
