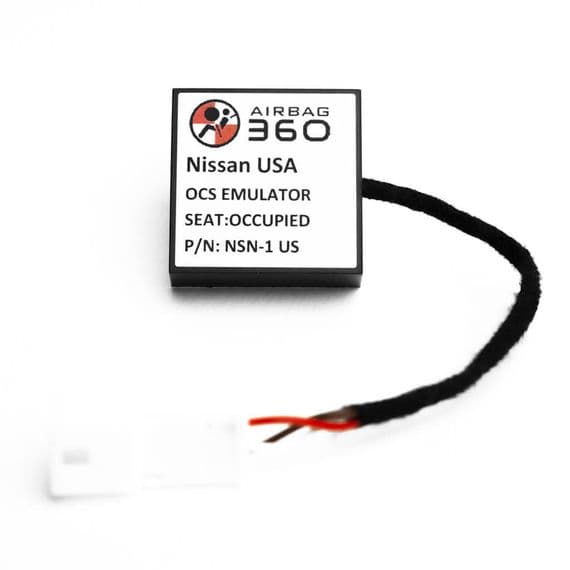

Nissan Maxima Occupant Classification OCS Sensor b1018 EMULATOR / Bypass
Compatibility:
- Make: Nissan
- Model: Maxima
- Years: 2009-2014* A35 chassis ( 7th generation )
- Version : USA - primarily for U.S and Canadian vehicles.
- OBD codes : b1018 /b1019
* The Airbag360 emulator is compatible with the Maxima 2009-2014 A35 chassis. If you are unsure which model is yours, do a quick Google search. We advise verifying both the starting and ending compatibility years in this case (2009 and 2014) as they are different generations of the car from overlapping production/registration years
Important Before Purchase:
- Ensure your vehicle's airbag issue has been correctly diagnosed.
- Airbag360 emulator specifically resolves fault codes indicating a passenger occupancy sensor malfunction (B1018 / B1019).
- Chassis code A35 / generation is matching your car description
Contact us if you require assistance with OBDII diagnostic codes, connector locations, or chassis / model veryfication . We would be glad to verify this information for You
Installation Instructions:
With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation. Crucially, for safety, it simulates a "Seat Occupied" status, thereby enabling the passenger airbag

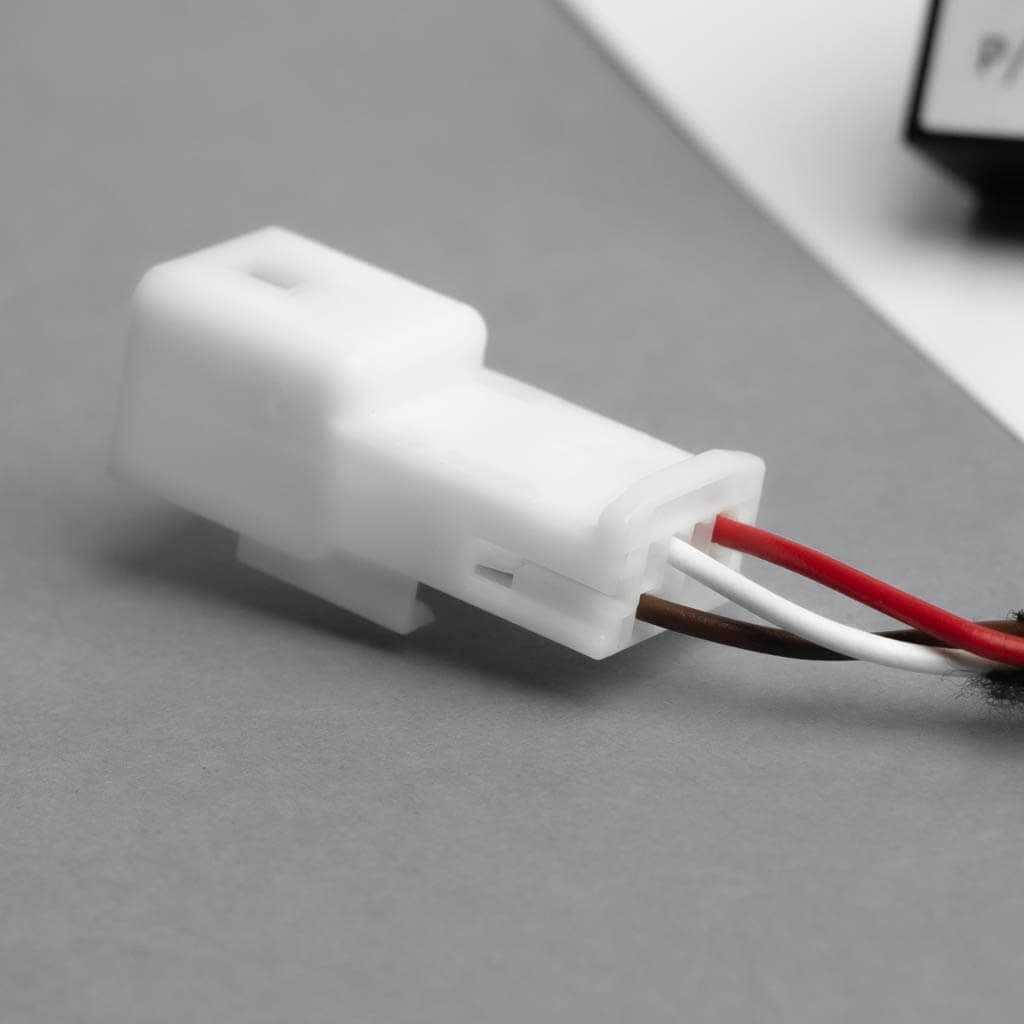

- Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
- Connect the Airbag360 emulator to the original sensor plug.
- Turn ON the ignition and start the vehicle.
In most cases, the Airbag warning light will turn OFF automatically after installation.
However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory.
We will also provide you with instructions on how to manually erase fault codes and how to disable the seatbelt reminder light that may be triggered by the occupied signal sent by the emulator.
The emulator simulates an occupied seat Therefore, the airbag will be armed, and the car will prompt you to fasten your seatbelt.
