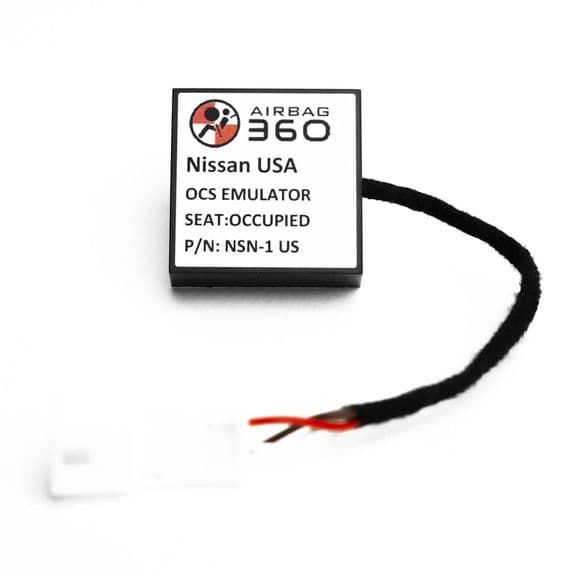

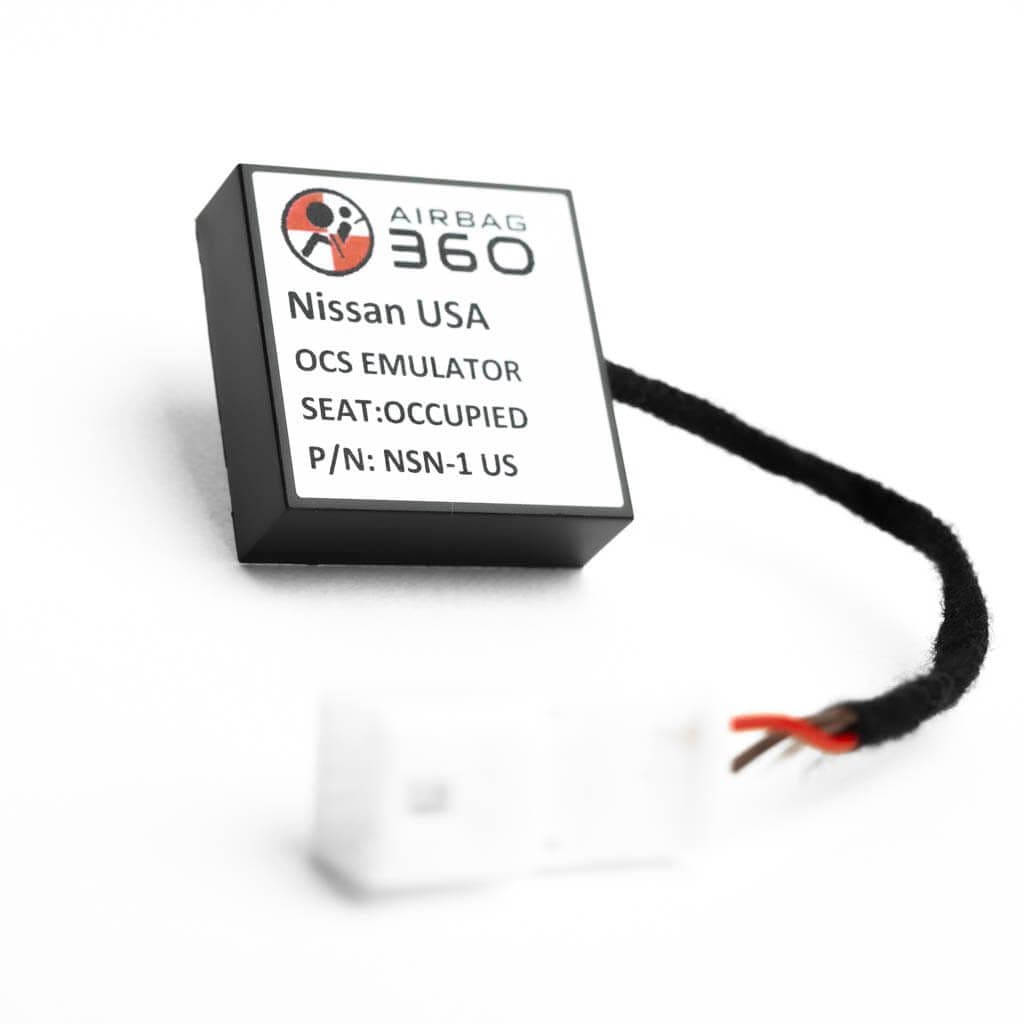

Nissan Leaf Occupant Classification  OCS  Sensor b1018 EMULATOR / Bypass

Compatibility:

• Make: Nissan
• Model: Leaf
• Years: 2010-2013 *
• Version :  USA   - primarily for U.S and Canadian vehicles.

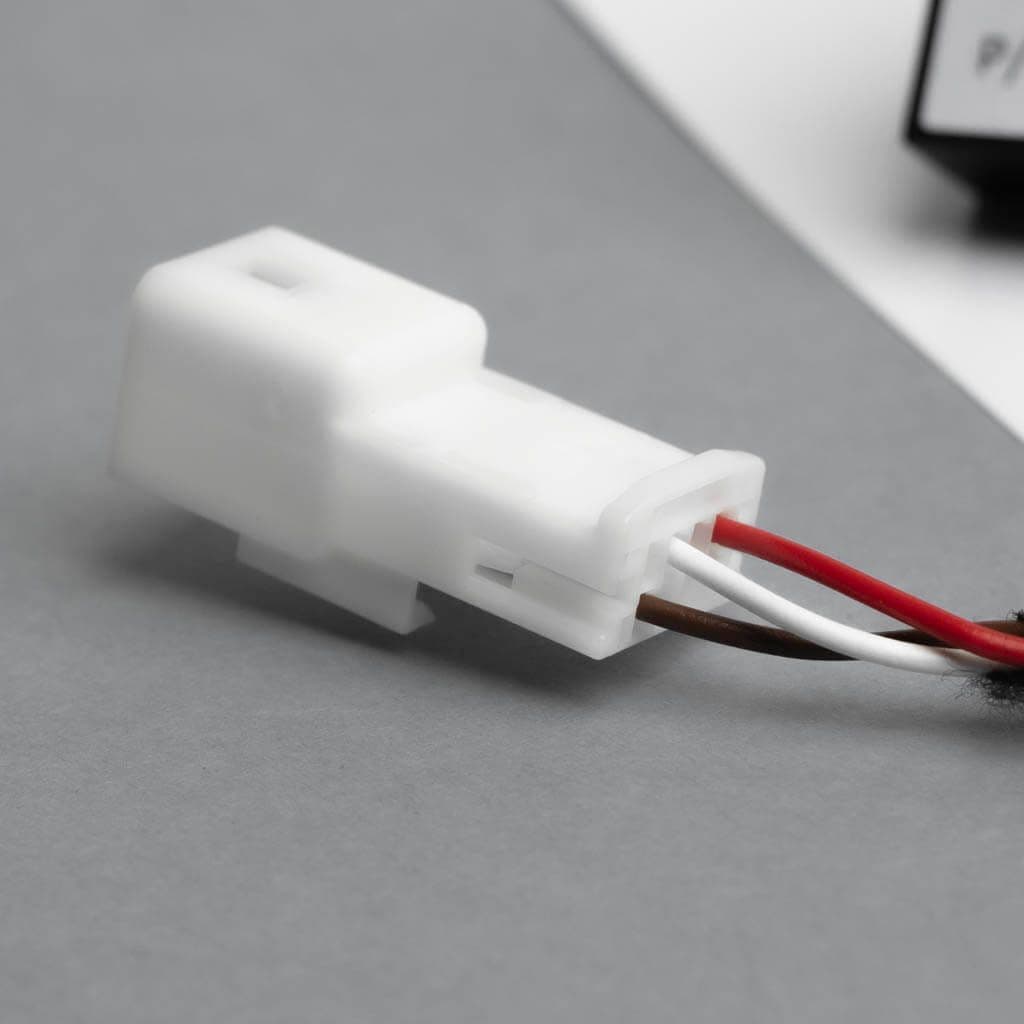

* 2013 Visually inspect the original Occupancy Sensor (OCS) connector  Ensure it has 3 wires in the following colors: Red, White, and Brown.

Important Before Purchase:

• Ensure your vehicle's airbag issue has been correctly diagnosed.
• Airbag360 emulator specifically resolves fault codes indicating a passenger occupancy sensor malfunction (B1018 / B1019).
• for 2013  leaf visually inspect the original Occupancy Sensor (OCS) connector  Ensure it has 3 wires in the following colors: Red, White, and Brown.

Contact us if you require assistance with OBDII diagnostic codes, connector locations, or wiring colors. We would be glad to verify this information for you

Installation Instructions:

With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation. Crucially, for safety, it simulates a "Seat Occupied" status, thereby enabling the passenger airbag

1. Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
2. Connect the Airbag360 emulator to the original sensor plug.
3. Turn ON the ignition and start the vehicle.

In most cases, the Airbag warning light will turn OFF automatically after installation.

However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory.

We will also provide you with instructions on how to manually erase fault codes and how to disable the seatbelt reminder light that may be triggered by the occupied signal sent by the emulator.

The emulator simulates an occupied seat Therefore, the airbag will be armed, and the car will prompt you to fasten your seatbelt.
