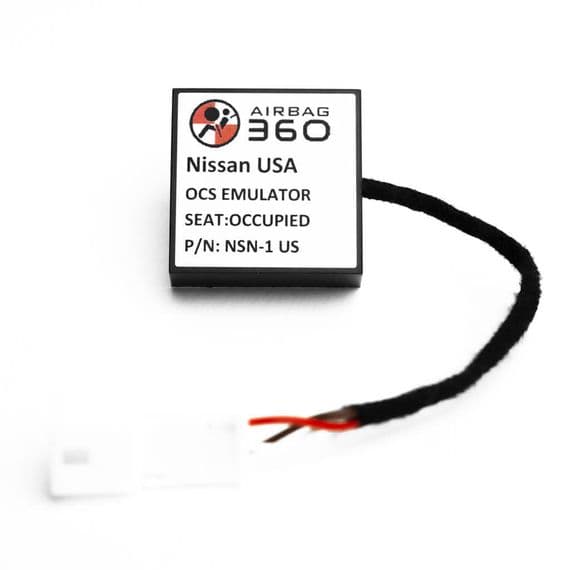

Nissan 350Z OCS Sensor (Occupant Classification) b1018 - bypass emulator
Compatibility:
- Make: Nissan
- Model: 350Z
- Years: 2006-2008
- Version : USA - primarily for US and Canadian vehicles.
- OBD codes : b1018 / b1019
When swapping seats (e.g., for racing Recaro seats), you only need one emulator for the passenger side. Airbag360 emualtor will solely clear codes related to the Occupant Classification System (OCS) sensor. Depending on your car's specifications, if your original seats have airbags, you will also need to bypass those.
Important before purchase
Ensure your vehicle's airbag system issue has been correctly diagnosed. Airbag360 emulator specifically resolves fault codes indicating a passenger occupancy sensor malfunction (B1018 / B1019)
If you are unsure about compatibility with your specific vehicle, please use the contact form or email us at info@airbag360.com.
Installation Instructions:
With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation. Crucially, for safety, it simulates a "Seat Occupied" status, thereby enabling the passenger airbag

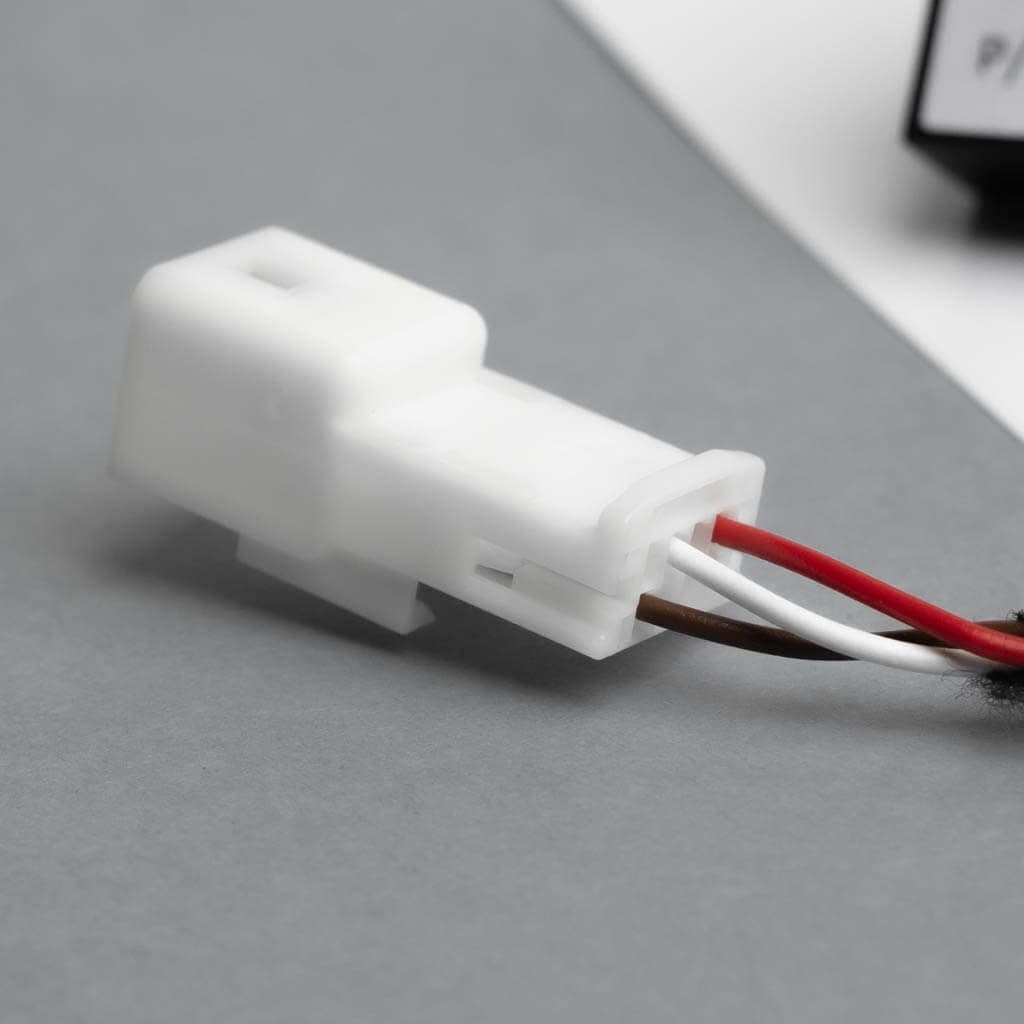

- Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
- Connect the Airbag360 emulator to the original sensor plug.
- Turn ON the ignition and start the vehicle.
In most cases, the Airbag warning light will turn OFF automatically after installation.
However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory.
We will also provide you with instructions on how to manually erase fault codes and how to disable the seatbelt reminder light that may be triggered by the occupied signal sent by the emulator.
(The emulator simulates an occupied seat.) Therefore, the airbag will be armed, and the car will prompt you to fasten your seatbelt.
