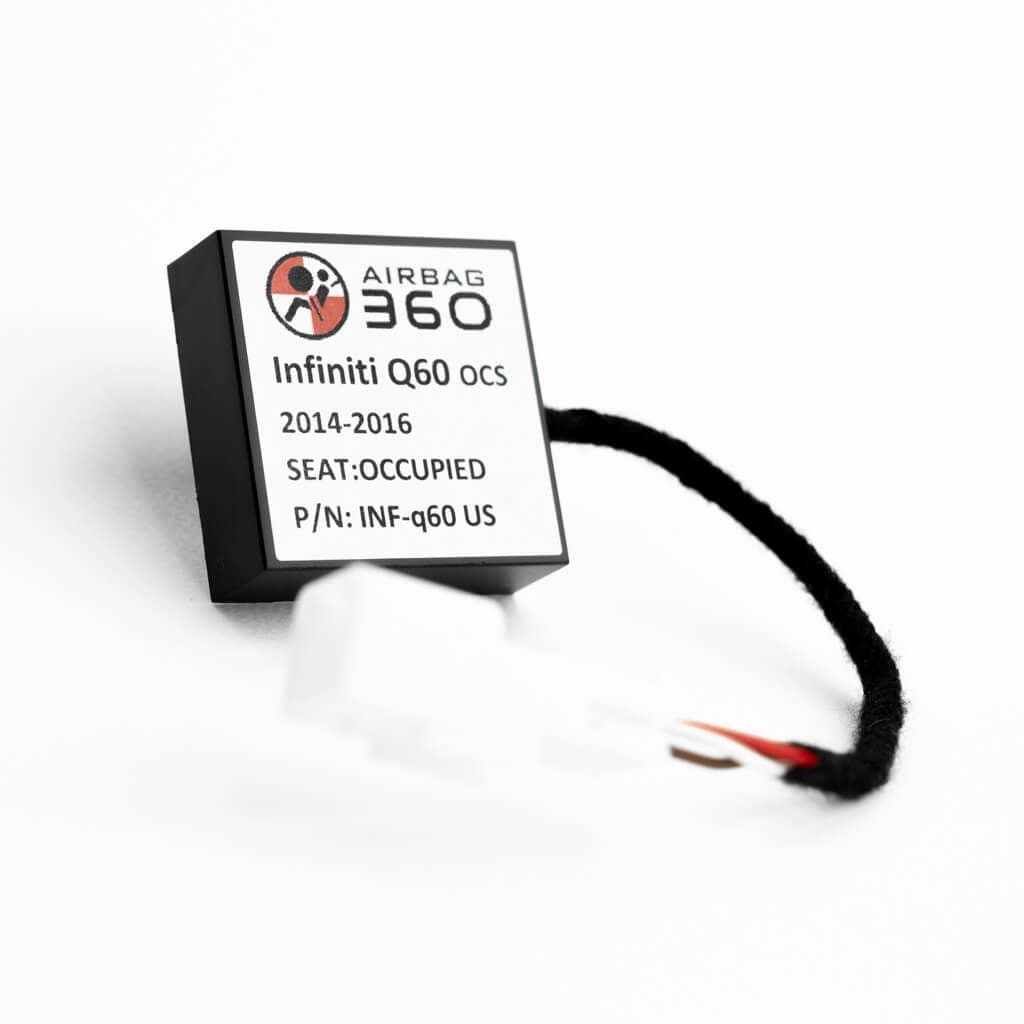

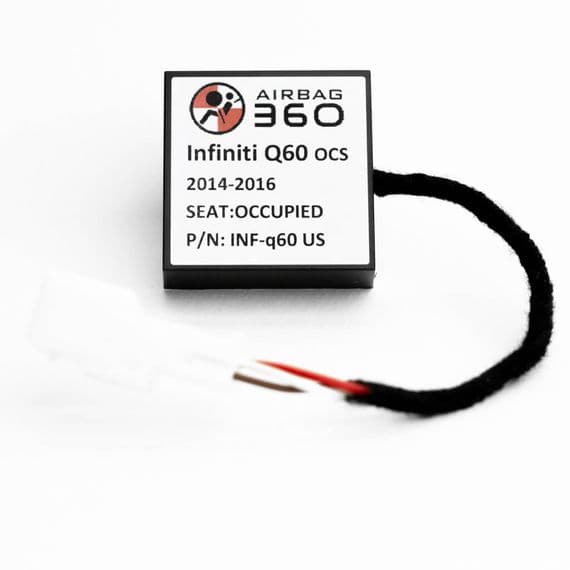

B1018 Infiniti Q60  Occupant Classification System  OCS  Sensor  EMULATOR / Bypass

Compatibility:

• Make: Infiniti
• Model: Q60
• Years: 2014 - 2016 only
• Version :  USA   - primarily for U.S and Canadian vehicles.
• OBD codes :  b1018 / b1019
• Sensor Type: Must be equipped with the original 3-wire Occupancy Classification System (OCS) sensor (Red, White, Brown) & on car  harness ( Purple , Red ,Black )
• Incompatibility: Q60 models from 2017 onwards utilize a different OCS sensor that is not compatible with this emulator.

Important: Before Purchase

1. Diagnosis is Essential: Ensure your vehicle's airbag issue has been correctly and professionally diagnosed.

2. Fault Code Resolution: The Airbag360 emulator is designed specifically to resolve fault codes indicating a passenger occupancy sensor malfunction (typically B1018 / B1019).

3. Visually check OCS sensor  connector (Red, White, Brown) &  car  harness ( Purple , Red ,Black )

4. Applicable Models: 2014 -2016 models only.

Contact us if you require assistance with OBDII diagnostic codes, connector locations, or chassis  / model  verification  . We would be glad to verify this information for You

Installation :

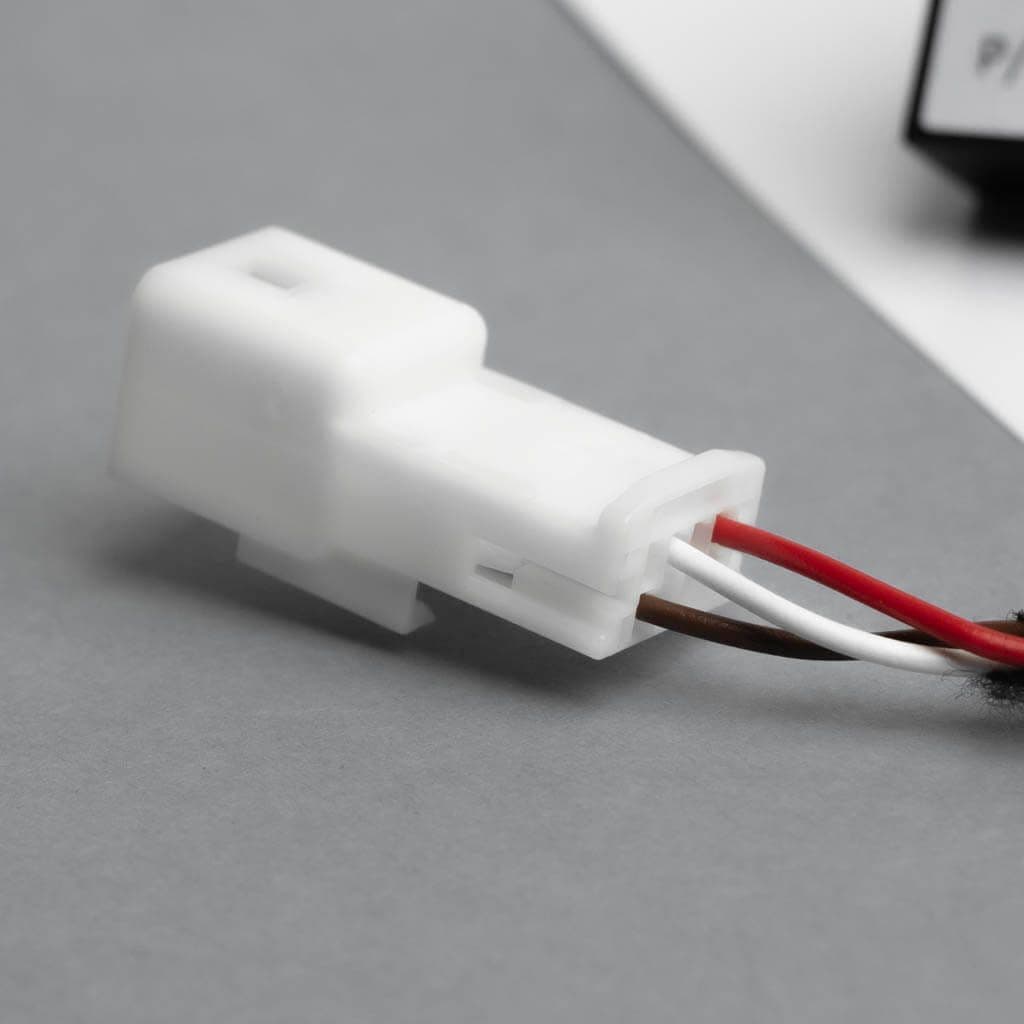

With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation.

Crucially, for safety, it simulates a "Seat Occupied" status, thereby enabling the passenger airbag.

Installation is quick and easy in 3 steps:

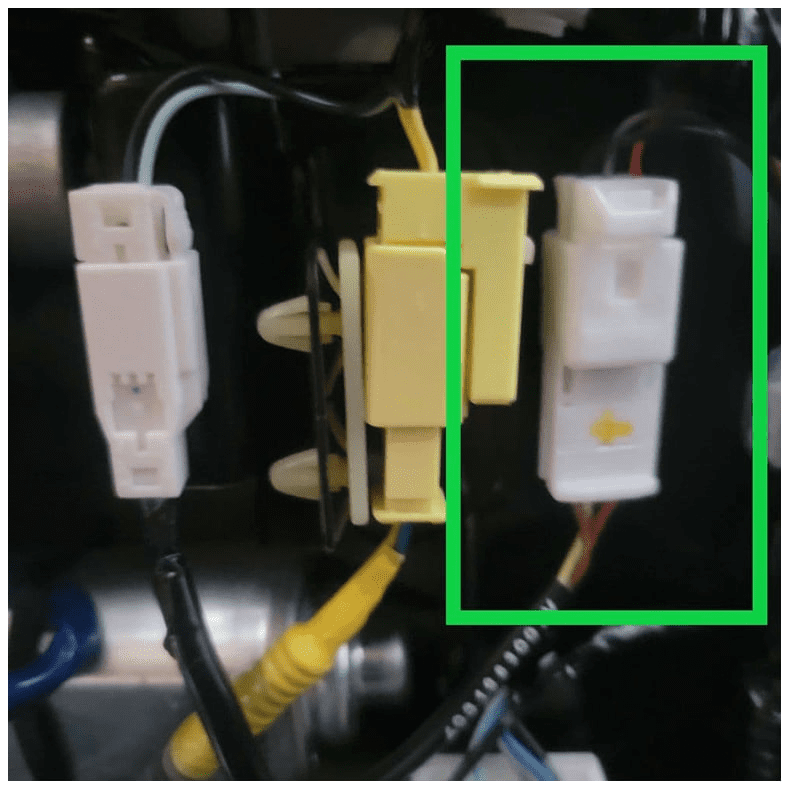

1. Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
2. Connect the Airbag360 emulator to the original sensor plug.
3. Turn ON the ignition and start the vehicle.

In most cases, the Airbag warning light will turn OFF automatically after installation.

However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory.

We will also provide you with instructions on how to manually erase fault codes and how to disable the seat belt reminder light that may be triggered by the occupied signal sent by the emulator.
