b1018 Infiniti G35  Occupant Classification System  OCS  Sensor  EMULATOR / Bypass

Compatibility:

• Make: Infiniti
• Model: G35  G35X
• Years: 2006-2008
• Version :  USA   - primarily for U.S and Canadian vehicles.

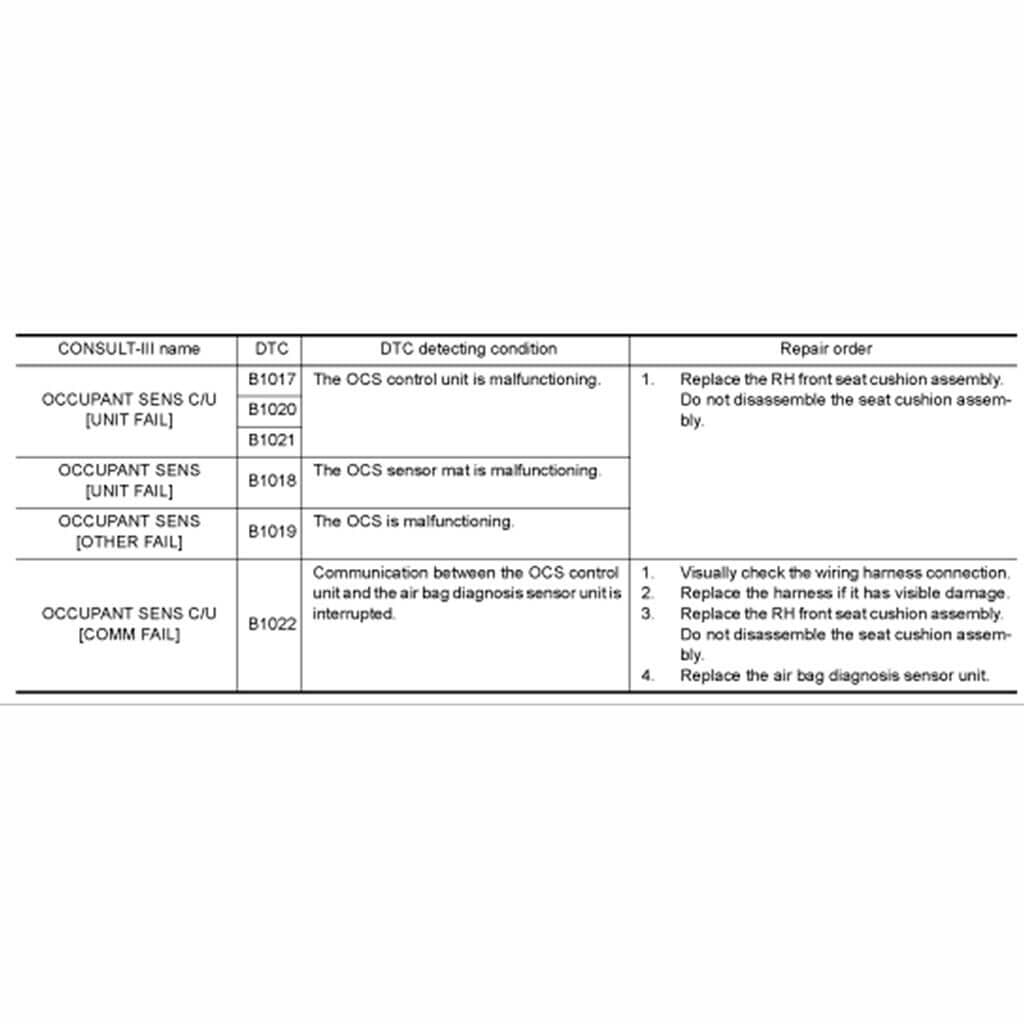

• OBD codes :  b1018 / b1019

Important Before Purchase:

• Ensure your vehicle's airbag issue has been correctly diagnosed.
• Airbag360 emulator specifically resolves fault codes indicating a passenger occupancy sensor malfunction (B1018 / B1019)

Contact us if you require assistance with OBDII diagnostic codes, connector locations, or chassis  / model  veryfication  . We would be glad to verify this information for You

Installation :

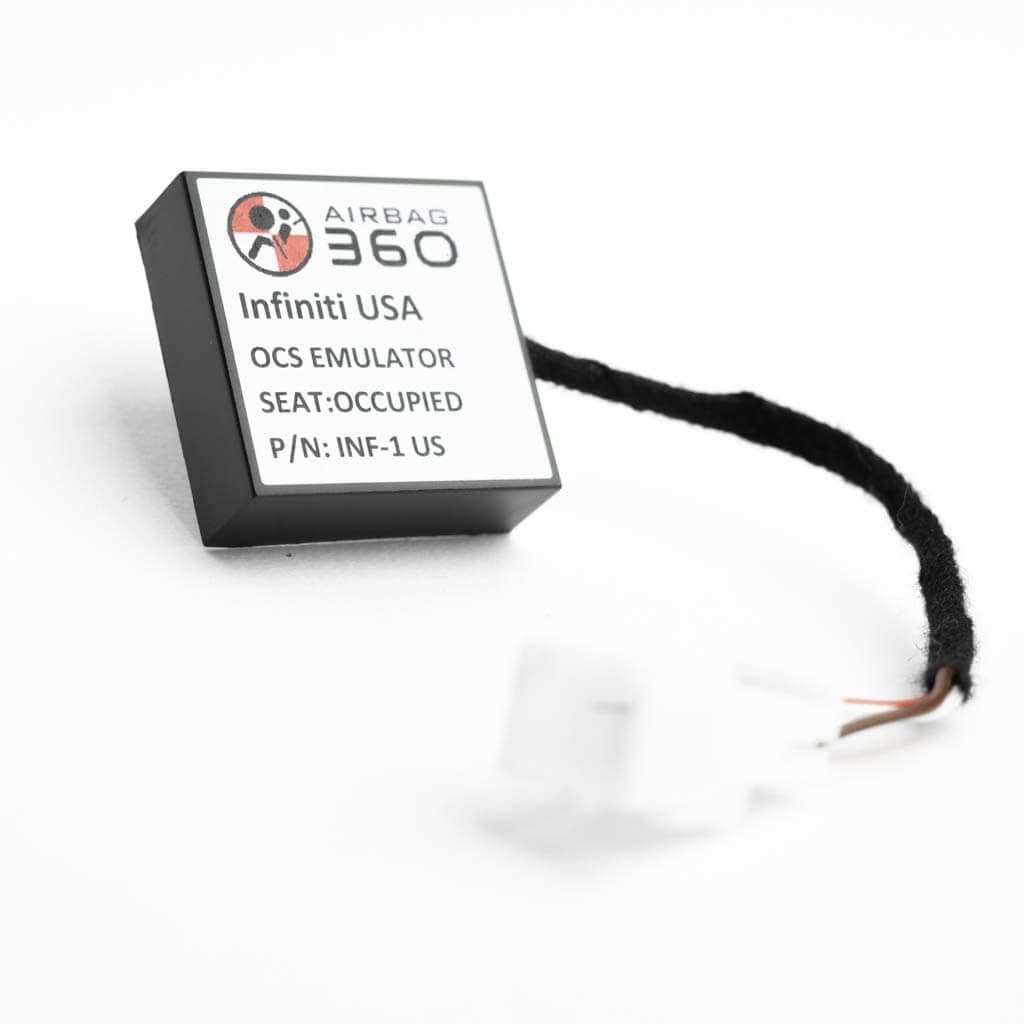

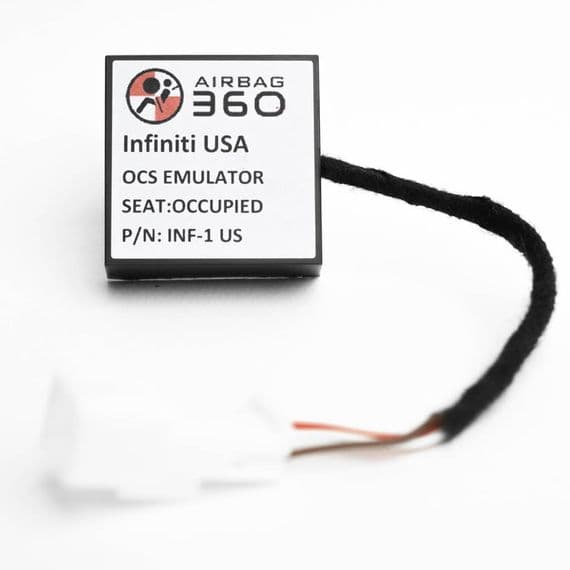

With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation.

Crucially, for safety, it simulates a "Seat Occupied" status, thereby enabling the passenger airbag.

Installation is quick and easy in 3 steps:

1. Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
2. Connect the Airbag360 emulator to the original sensor plug.
3. Turn ON the ignition and start the vehicle.

In most cases, the Airbag warning light will turn OFF automatically after installation.

However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory.

We will also provide you with instructions on how to manually erase fault codes and how to disable the seatbelt reminder light that may be triggered by the occupied signal sent by the emulator.
