Hyundai Accent  (2006-2010) OCS occupant  classification   sensor  emulator

Compatibility:

• Make: Hyundai
• Model: Accent
• Years: 2006-2010
• Version :  USA

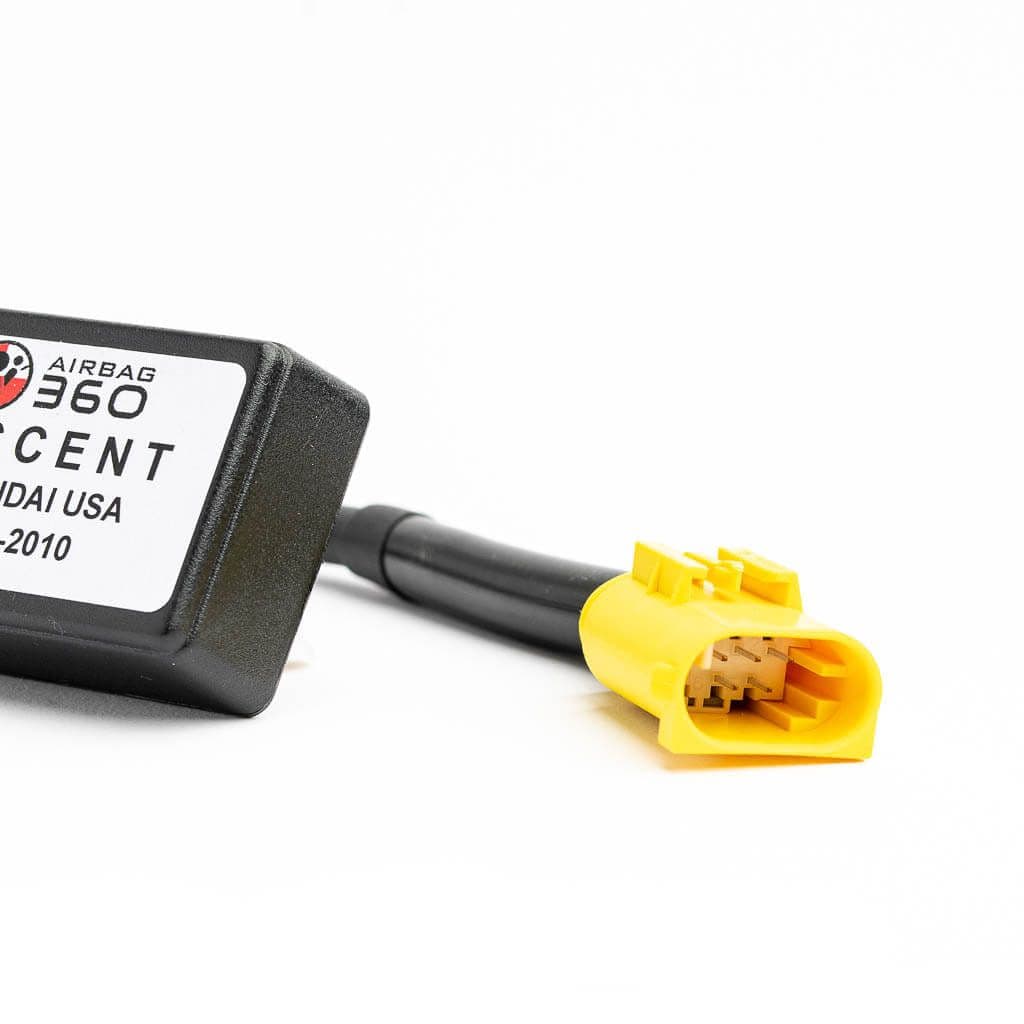

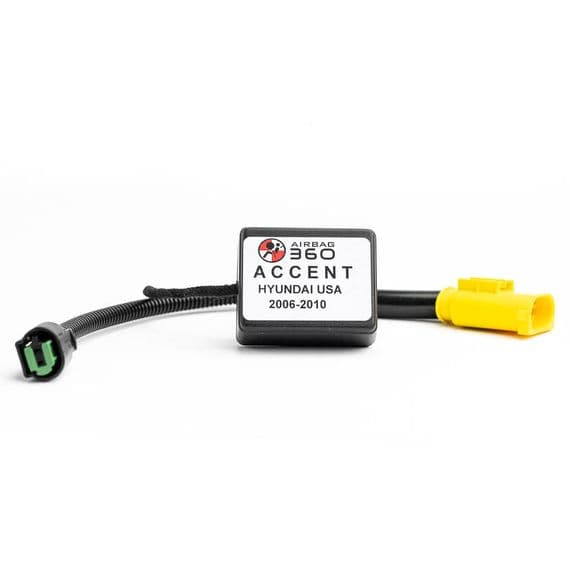

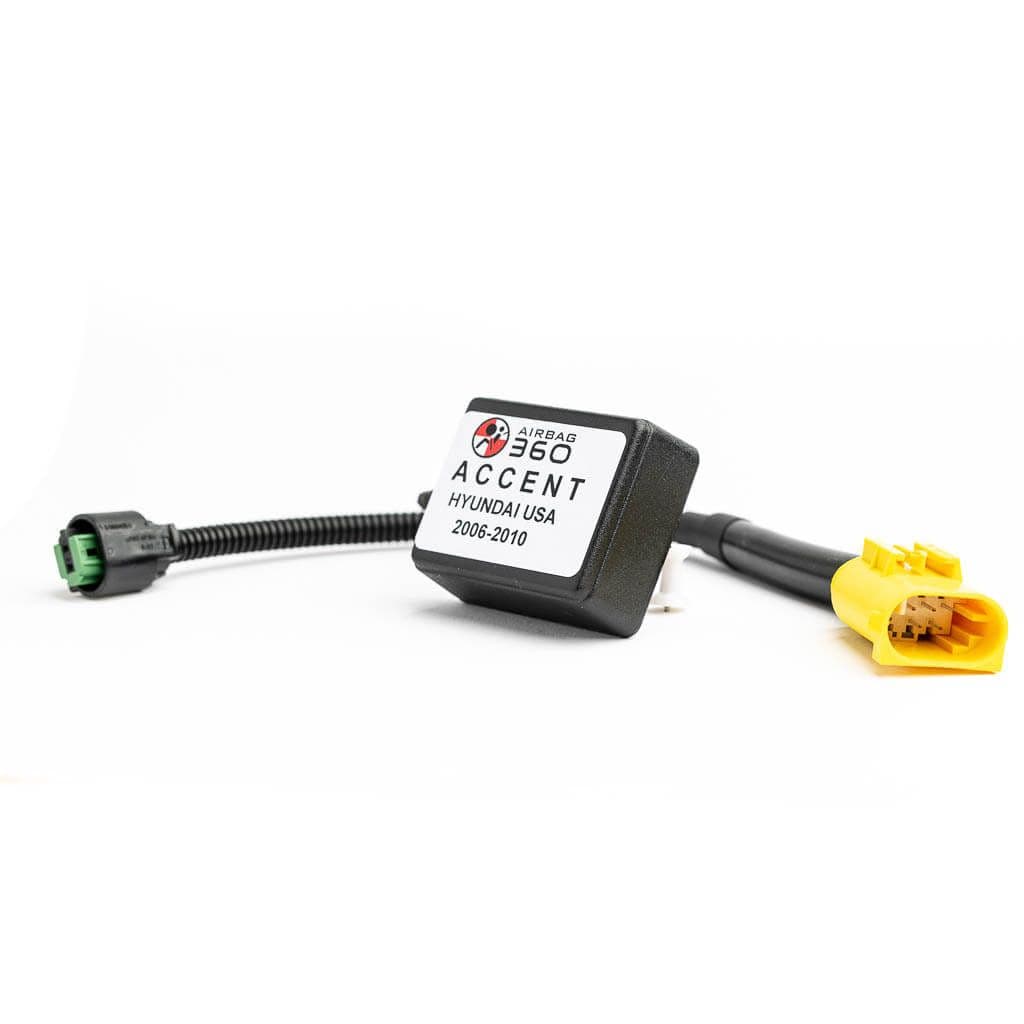

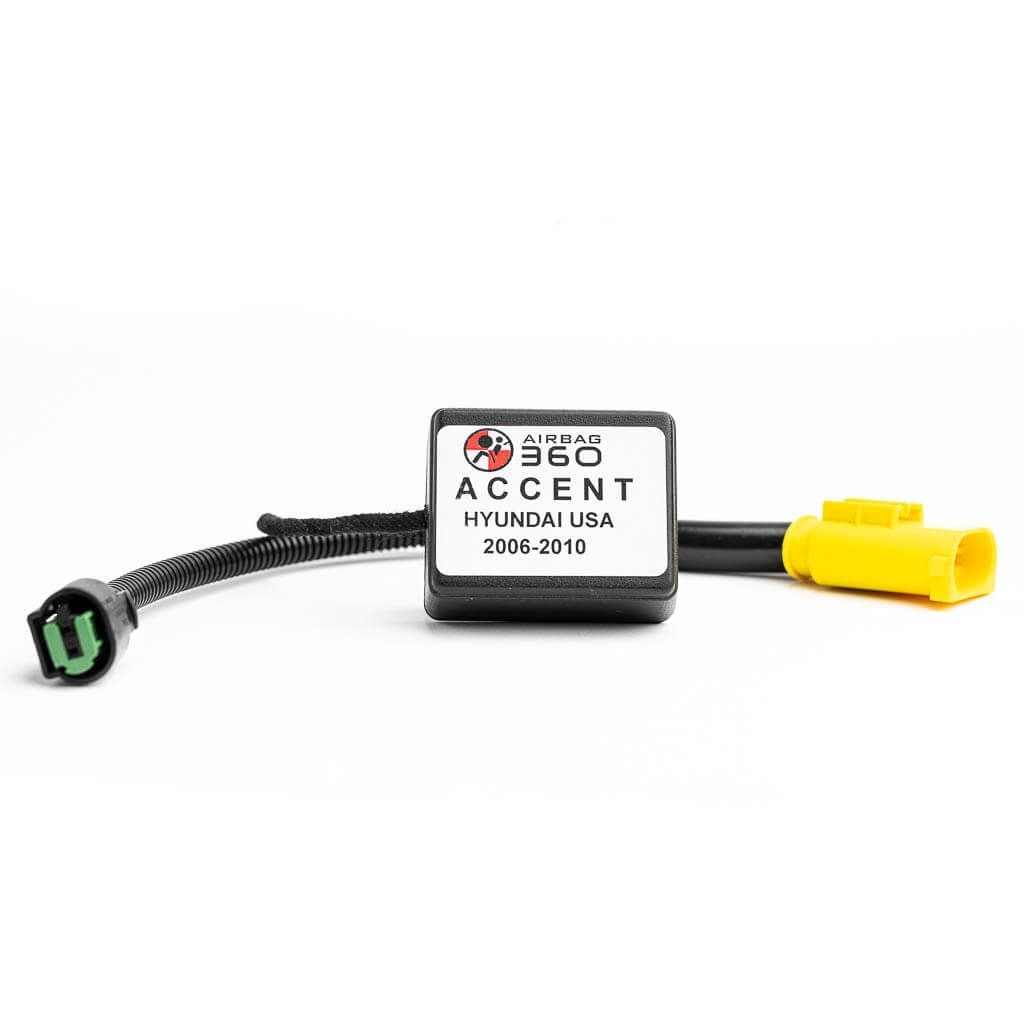

The airbag360 emulator is a two-connector device. One connector connects to the OCS sensor and the other to the seat position sensor. It's a complex device with original connectors that provide a comprehensive solution and resolve the   DTC : B1448 fault code (Occupant Classification) - Passenger Sensor Mat Defect.

Before Purchase:

• Ensure your vehicle's airbag issue has been correctly diagnosed. Airbag360 emulator specifically resolves fault codes indicating a OCs sensor malfunction (B1448).

Airbag360 emulator features:

• With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation
• Functionality: Simulates "Seat Occupied" status, enabling the passenger airbag.
• Manufactured  using high-quality, automotive-grade components

Installation Instructions:

1. Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
2. Connect the Airbag360 emulator to the original sensor plug.
3. Turn ON the ignition and start the vehicle.

In most cases, the Airbag warning light will turn OFF automatically after installation.

However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory
