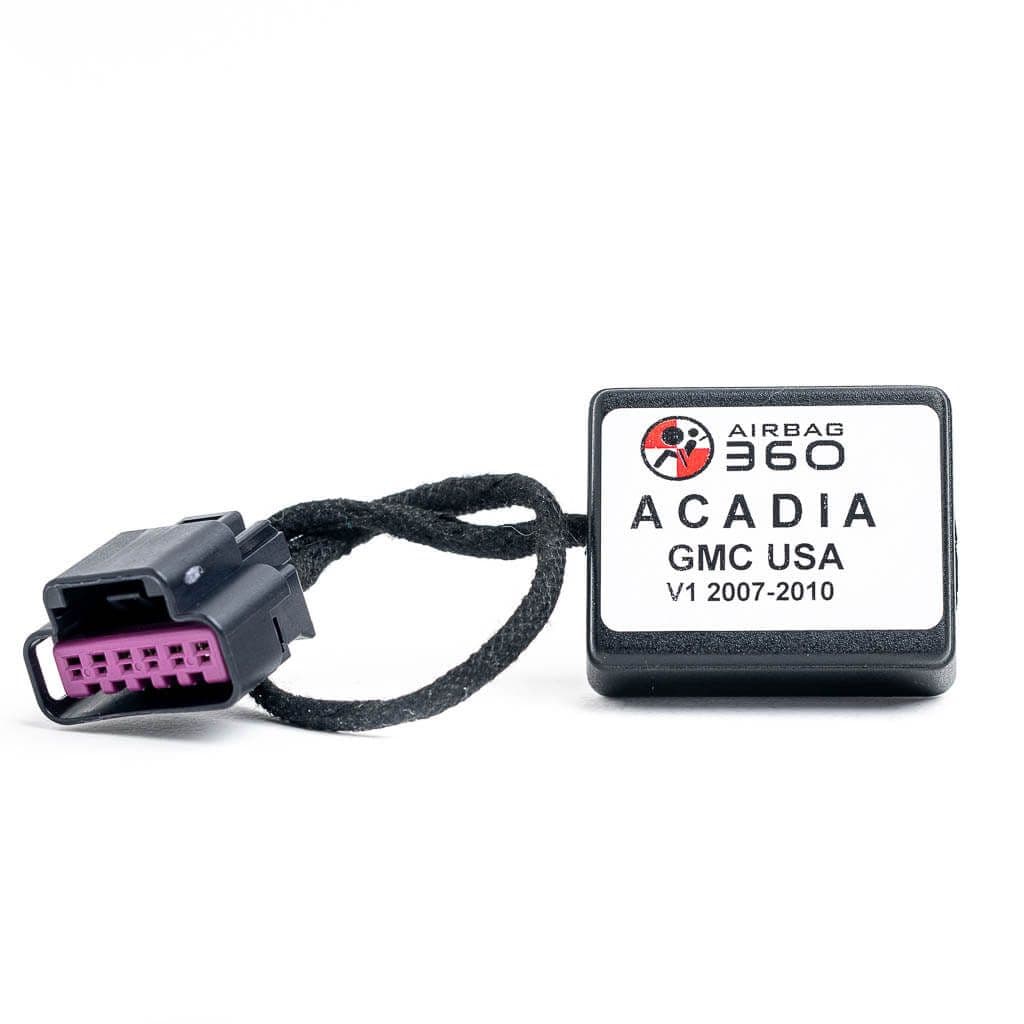

GMC ACADIA Passenger Airbag Seat Occupancy sensor emulator

(3)
GMC ACADIA 4 wire sensor

Product information

GMC Acadia  2007-2010  Front  Passenger Seat Airbag Seat Occupancy Sensor Emulator / Bypass





   C o m p a t i b i l i t y .
MakeGMC  USA
Model: ACADIA
Year : 2007-2010

   * A D D I T I O N A L    D E T A I L *
Not compatible  with 6pin /5 wire sensor.


Make sure that  sensor side connector has  4 wires
picture below.


Sensor side 4 wire :


Under the passenger seat you will find that  sensor side  has 4 wires when other side of the harness has only 3 wires .
This is correct set-up for 4 wire sensors.





If  You are not sure about  compatibility  with your vehicle ,
 please use contact form or send us E-mail to info@airbag360.com





W h a t    a r e   o c c u p a n c y  s e n s o r s  ( O C S ) ?




OCS are very expensive   sensors integrated in vehicle seats .
Inside the seat, you will find a pressure sensor, and an electronic control unit (ECU).

When someone sits on the seat, the pressure/ occupancy  sensor signals the occupant's weight to the ECU.

The ECU then sends that data to the airbag, which has its own control unit.

Based on that information, the vehicle's computer turns the passenger airbag ON or OFF .





H o w   A i r b a g  3 6 0   w o r k s  ?


Airbag360 emulators connected in to harness under to passenger seat
stimulates presence of the passenger.

For Safety reasons Airbag360 emulator generated and send the same signal to ECU as occupied seat.

In case of accident  the Airbag will deploy even without presence of Passenger
Airbag's are permanently activated


We Advice that rear-facing child seat's not to be transported on front seat in your vehicle  when emulator is in use.

Remember  even on cars equipped with an OCS, it's always safest to keep small children in the back seat.

Installation of Airbag360 emulator do not required removal  or  and disassemble of the seat  -  NO  labour cost .



Prior to buying Airbag360 module make sure Your car is correctly diagnosed.
 If You are not sure about fault codes  or its description  contact us and we will check & confirm them for You.
 Airbag360 emulator will only cure / resolve fault codes that indicate passenger occupancy sensor malfunction.
 Any other & not related  codes need to be resolved separately.



I n s t a l l a t i o n

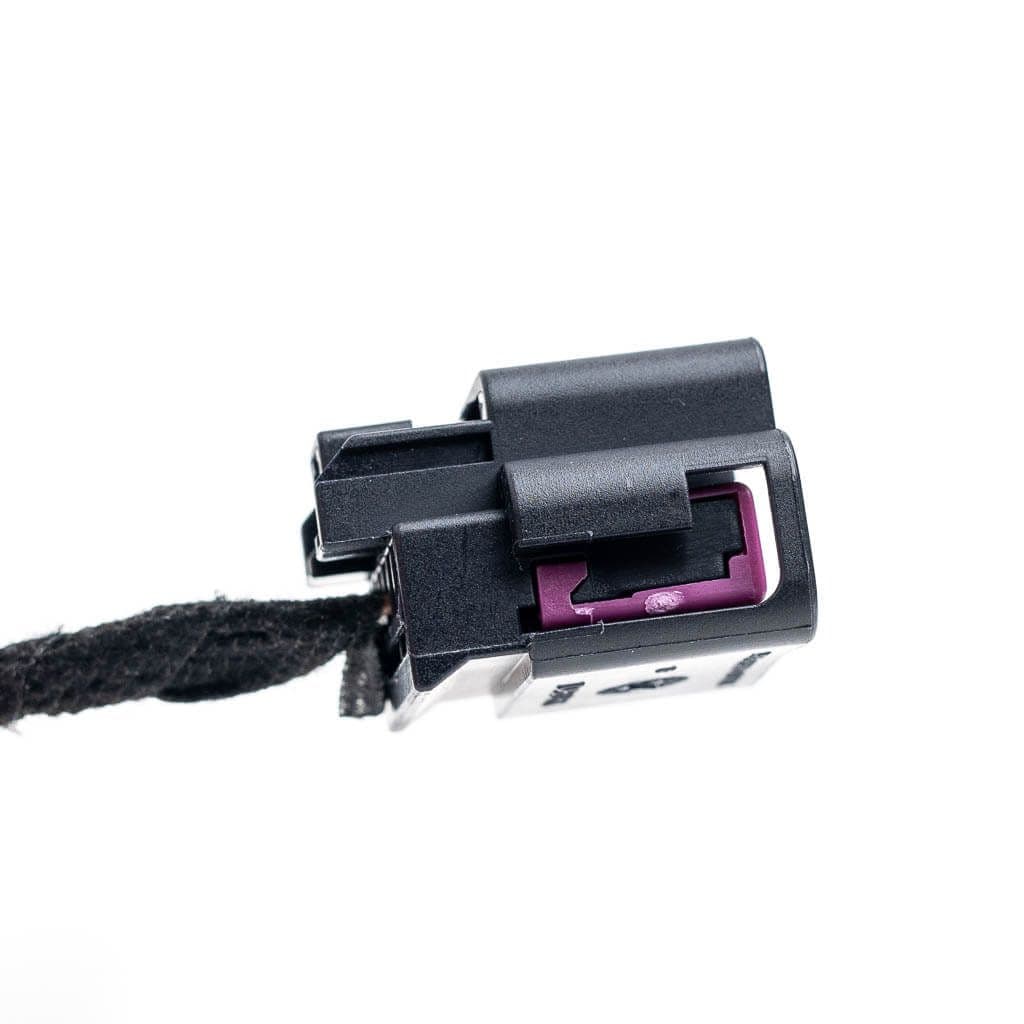

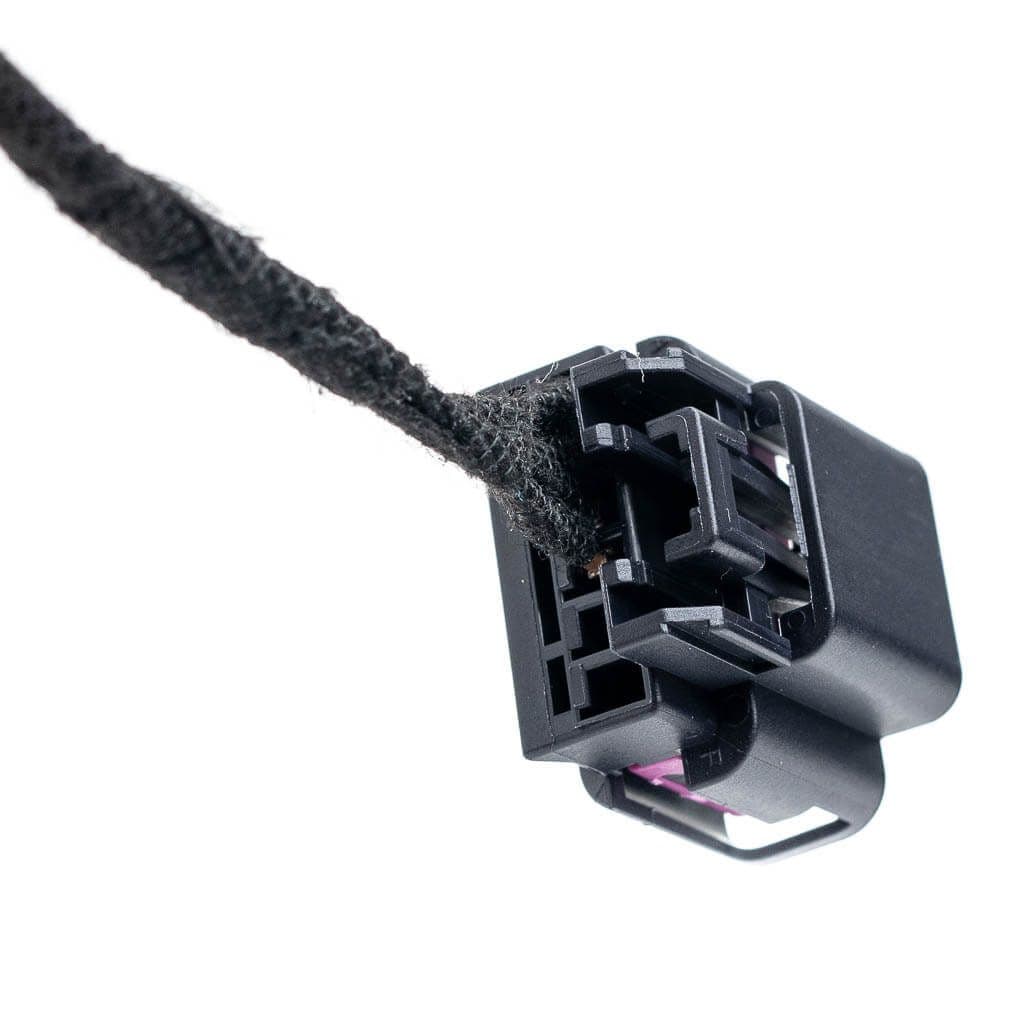

Airbag360  modules are equipped with original connector ( exact same as the original sensor in Your vehicle )


Step 1. Turn Off ignition   - disconnecting battery is not required
Step 2 . Under Passenger seat locate sensor connector.
Step 3 . Instead of original sensor plug in Airba360 bypass emulator
Step 4.  Optionally  install seat belt simulator.
Step 5 . Turn ON ignition .
Step 6 .  If needed reset / erase fault codes .


 Reset / erase is standard procedure that sometimes  need to be completed   after repair and /or changes are applied to the airbag system .















Your Safety is Our Priority !


20822817,25981950,20863388,209333923

Technical specifications

Brand AIRBAG360
Condition New

product review overlay image

Customer reviews

(3 Customer reviews)
Write A Review
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

2007 GMC Acadia (4 Wire Sensor) - DTC B0081 Passenger Presence System

I called 2 GMC Dealers and they estimated between $800 - $1,300 to resolve this issue.

I ordered the 2007 GMC Acadia (4 Wire Sensor) Passenger Seat Occupancy Sensor Emulator from Airbag 360

Note:

It Does Not Disable the Passenger Airbag, but rather will fire the Passenger Airbag weather or not someone is in the Passenger seat.

So, I still have Airbag protection for my Passenger.

It Costs approximately $88 includes Shipping to the US. I received the emulator about 5 days after it shipped.

https://airbag360.com/gmc-acadia--passenger-airbag-seat-occupancy-sensor---emulator-346-p.asp

With the Key off, I Unplugged the Passenger Seat Sensor connector, Plugged-In the Emulator (connector was exact fix), turned the Key On, and Whoo la . . . We are Good to Go!

Took me longer to "Find" the Seat Sensor Connector than to fix the issue 😊

Was Not necessary to clear the DTC, just installed the Emulator and it cleared the fault when I turned the Key On.

Could not have been any easier.

My wife Thanks You Very Much and she is thrilled that she can continue to drive the Acadia for a while. She loves this car 😊

I love being able to fix it for less than $100

YouCanDoIt 2020-03-17 | United States - Missouri | March 2020

2008 GMC Acadia (4 Wire Sensor) - DTC B0081

Our Acadia popped up several airbags codes. All were easily fixed except for code B0081. I tried several checks. Not having upholstery tools, I didn't want to take the passenger seat apart. For safety deployment of airbags, I tried this plug in. Amazingly it worked. The B0081 code disappeared. The passenger seatbelt light did come on. The light was turned off by using the seatbelt clipped in. To keep the seat beats in reach for someone entering, a seat belt extender was buckled into the original seatbelt clip. I recommend this by pass for anyone having trouble with this code.

Gerardo Chairez | Austin, Tx | July 2020

2007 gmc acadia boo81-0f ,sensor worked great..

Recieved my emulator today and with key off i unplugged seat sensor and plugged airbag360 emulator then turned on ignition and no more service airbag light on display and no more airbag light in the cluster,.worked great im very pleased with this purchace...thanks to all at airbag360 ..

mark | vancouver,washington | May 2021
