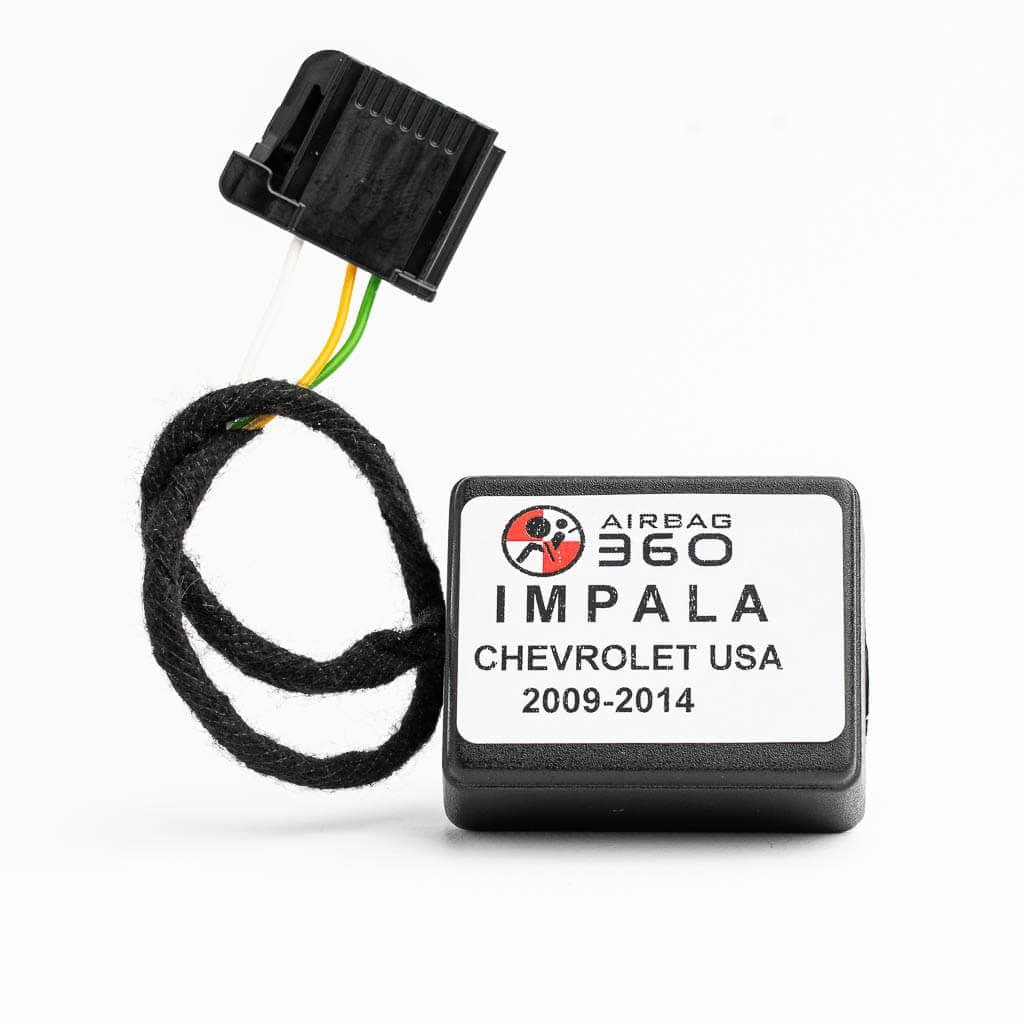

Chevrolet Impala  2009-2015   Passenger  Presence module  emulator  (DTC B0074)

Compatibility:

• Make: Chevrolet
• Model: Impala
• Years: 2009-2015
• Version :  USA / Canada
• Sensor : 3 wire

Before Purchase:

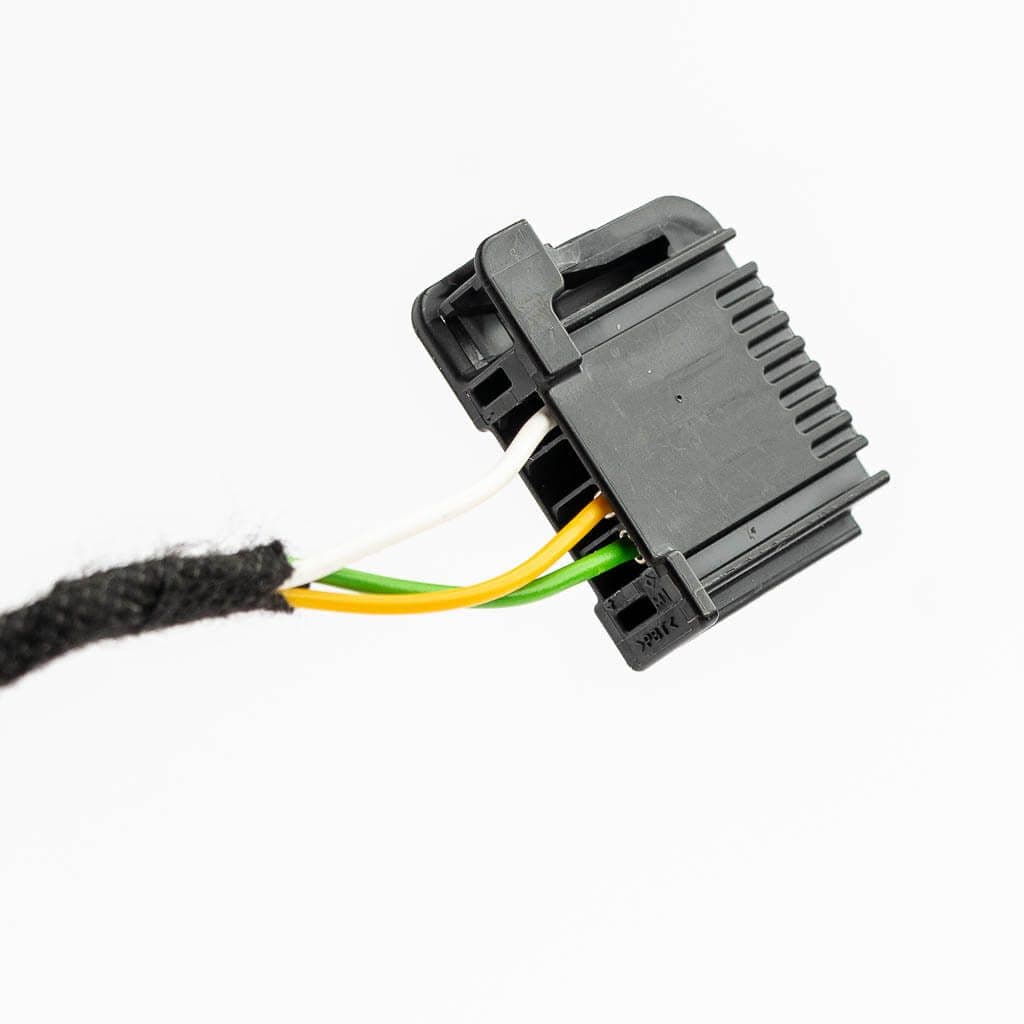

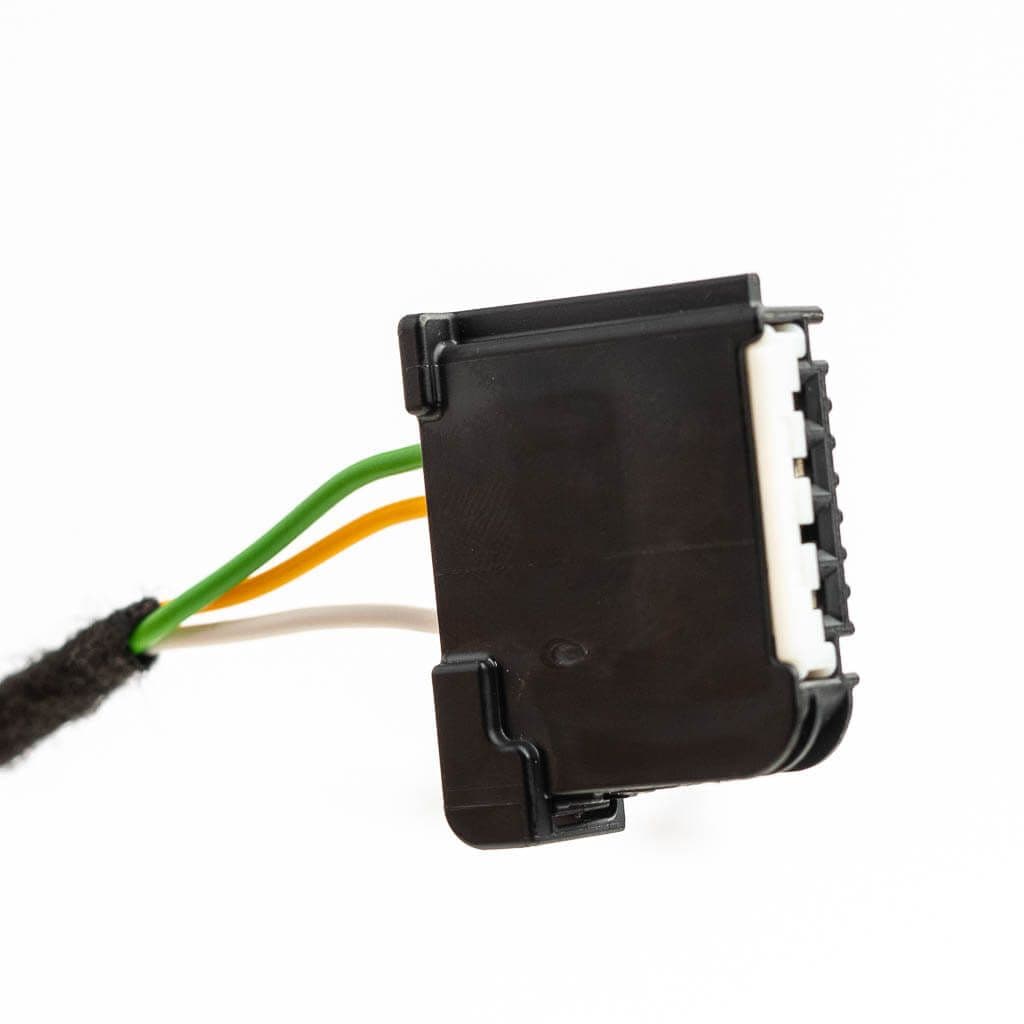

• Visually check sensor  connector *
• Ensure your vehicle's airbag issue has been correctly diagnosed. Airbag360 emulator specifically resolves fault codes indicating a passenger  presence  sensor  (B0074   or  b0081-0f )

Airbag360 emulator features:

• With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation
• Functionality: Simulates "Seat Occupied" status, enabling the passenger airbag.
• Manufactured  using high-quality, automotive-grade components

Installation Instructions:

1. Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
2. Connect the Airbag360 emulator to the original sensor plug.
3. Turn ON the ignition and start the vehicle.

In most cases, the Airbag warning light will turn OFF automatically after installation.

However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory
