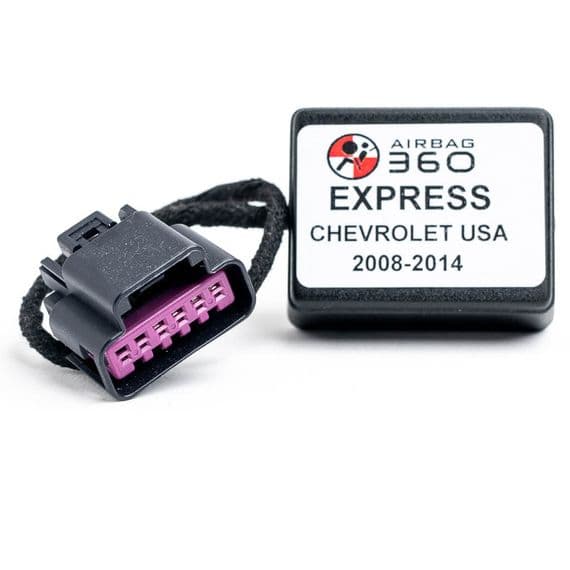

Chevrolet Express  2008-2014   Passenger  Presence Sensor PPS b0074 emulator

Compatibility:

• Make: Chevrolet
• Model: Express
• Years: 2008-2014
• Version :  USA / Canada

Before Purchase:

• Visually check sensor  connector *
• Ensure your vehicle's airbag issue has been correctly diagnosed. Airbag360 emulator specifically resolves fault codes indicating a passenger  presence  sensor  (B0074   or  b0081-0f )
• Compare the two available Express emulators  for  years 2008-2014

*GM utilizes different part numbers 19127855 ,19127971, 19150938 , across the same model year for a given car, likely depending on the trim and specifications. As we do not have access to a VIN database for part number verification, we strongly advise a simple visual check. By comparing the connector shape and wiring color, we can ensure correct fitment and compatibility.

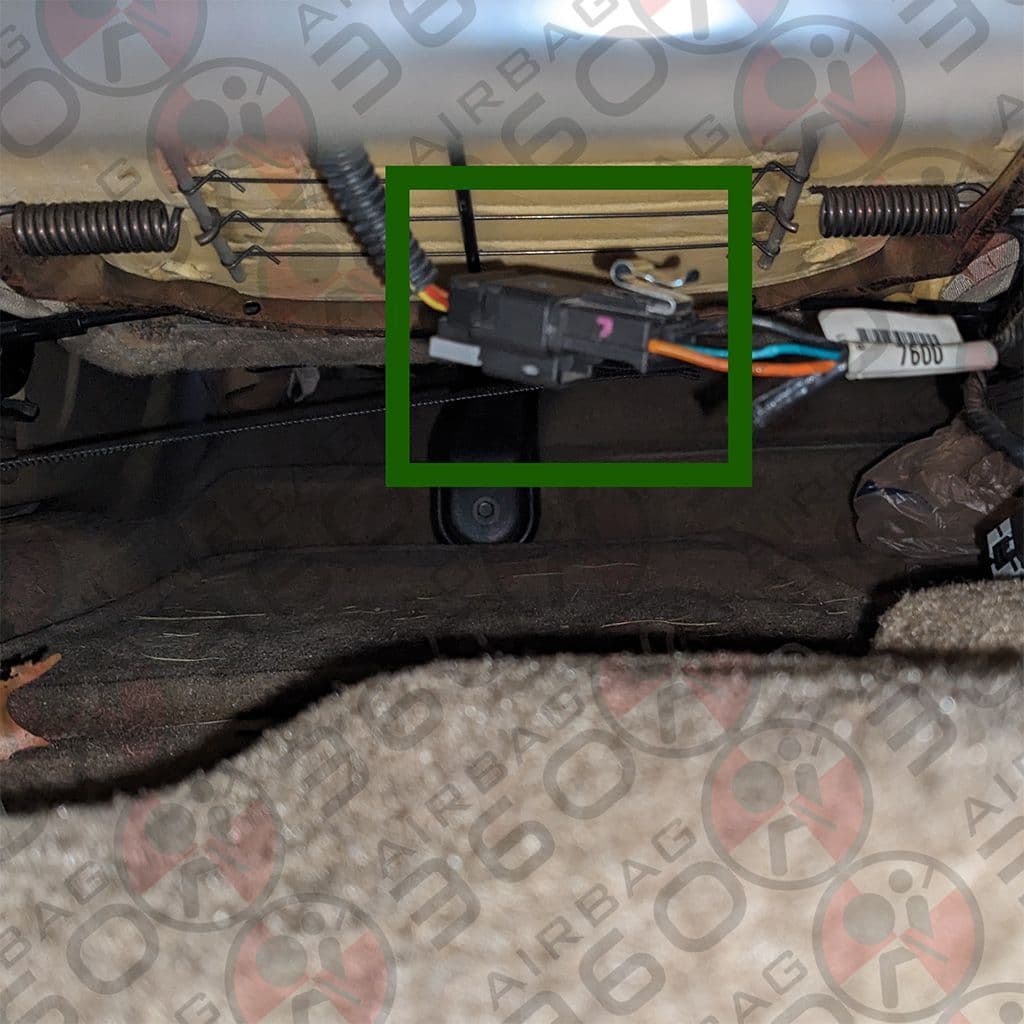

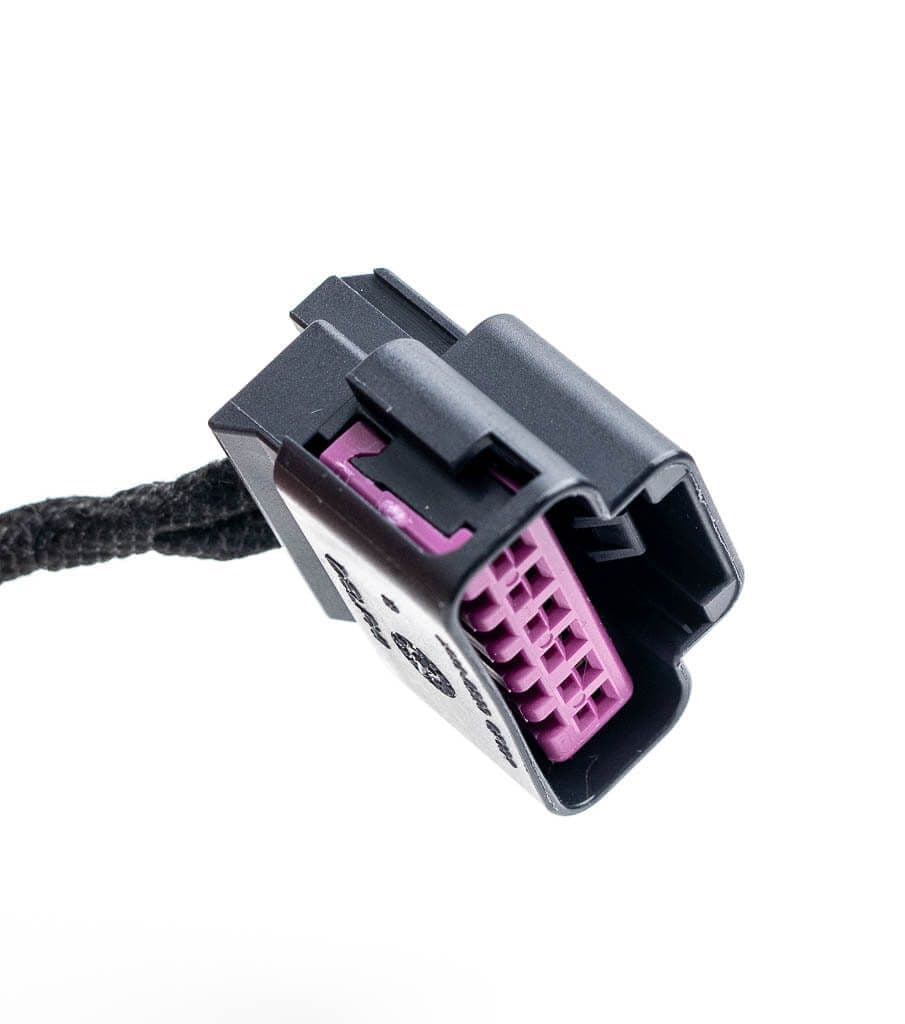

Look under the passenger seat. Please note that the sensor connector does not come directly out of the floor; there may be a similar connector nearby on the floor, but it is not the one you're looking for. The correct sensor connector is attached to the seat bottom with a metal clip. Its outer shell is black with a purple insert. On the sensor side (female connector), the wires are white, yellow, red, and brown. For reference, we have included a picture of it in the product gallery. If you are unsure, please send us an email, and we will gladly verify and confirm which airbag360 emulator you need for your truck. You can also compare the two available Express emulators to your truck setup; this simple visual check will ensure you order the correct emulator for your vehicle.

Airbag360 emulator features:

• With its original manufacturer connector, the Airbag360 OCS emulator ensures a simple and error-free installation
• Functionality: Simulates "Seat Occupied" status, enabling the passenger airbag.
• Manufactured  using high-quality, automotive-grade component

Installation Instructions:

1. Turn OFF the ignition. Locate and disconnect the original occupancy sensor connector (3-pronged) under the passenger seat.
2. Connect the Airbag360 emulator to the original sensor plug.
3. Turn ON the ignition and start the vehicle.

In most cases, the Airbag warning light will turn OFF automatically after installation.

However, in some instances, you may need to clear stored fault codes, depending on how long the malfunction was present and where the code was saved in the vehicle's memory
